Egg Tray Making Machine for Recycled Paper Pulp Packaging
⚙️

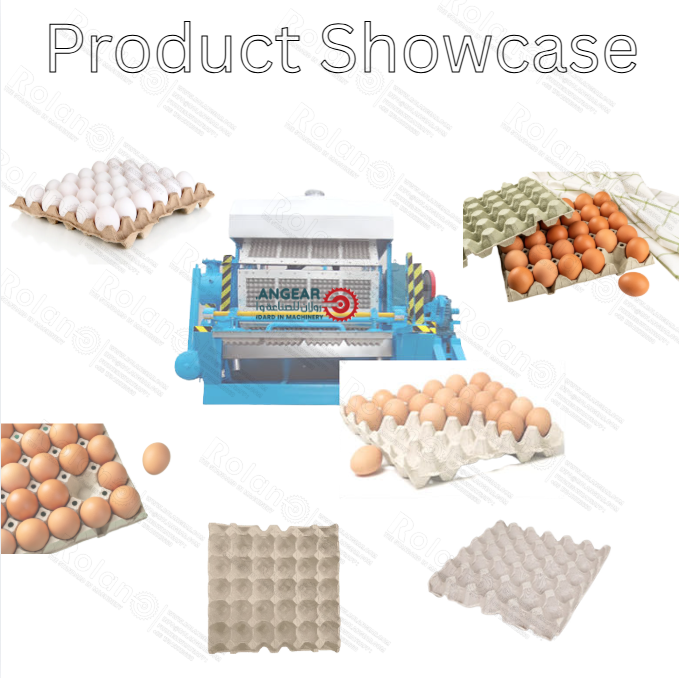

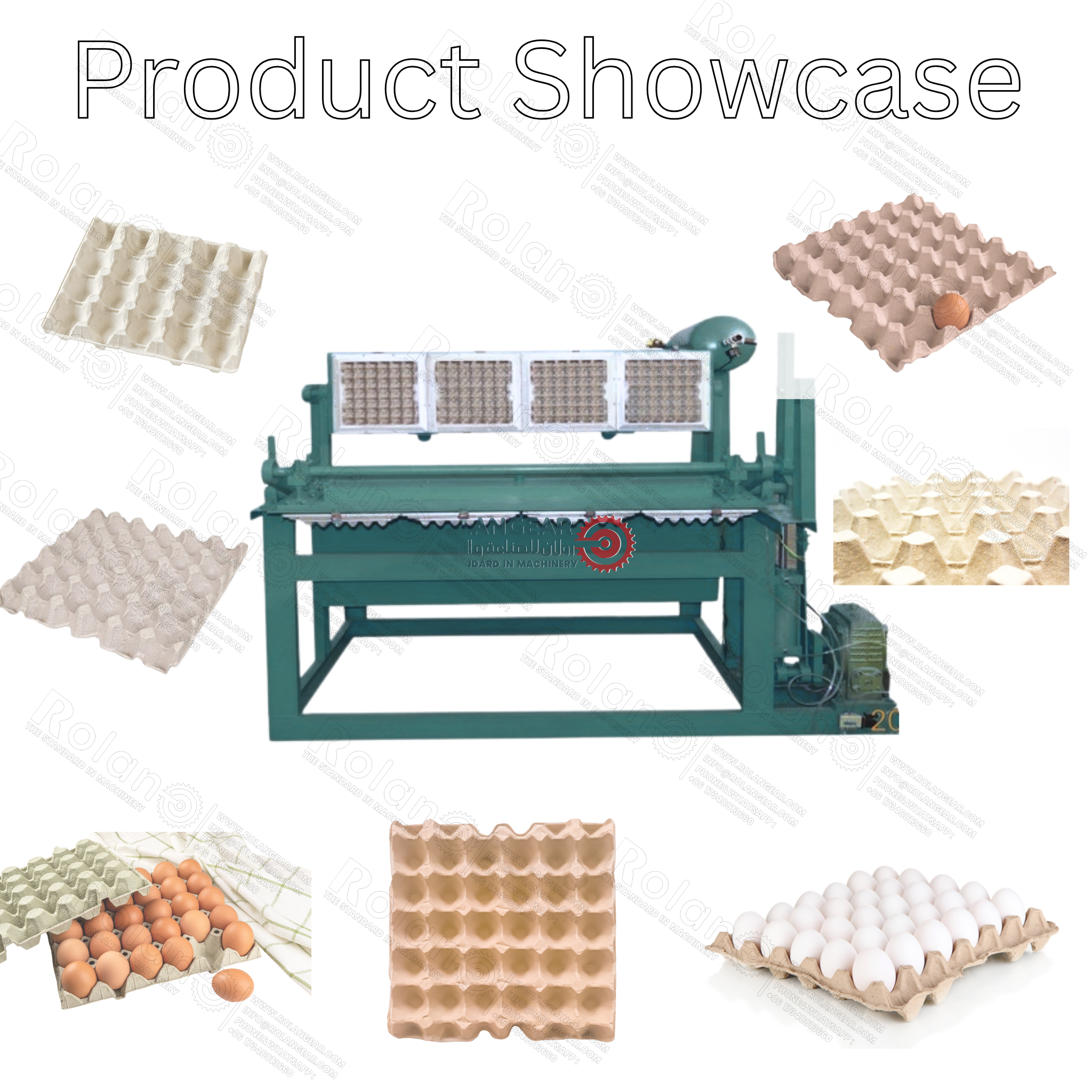

Multiple Molded Products
By changing molds, the line can be planned for egg trays, egg cartons, fruit trays, cup holders, bottle trays and other molded fiber packaging.
Complete Factory Layout
Configure pulping, forming, drying, hot pressing, stacking and packing as a complete automatic egg tray production line according to capacity and space.
Egg Tray Production Line Specifications
| Line type | Paper pulp egg tray production line / molded pulp packaging production line |
| Raw material | Waste paper, carton paper, newspaper, office paper and other suitable recycled paper |
| Finished products | Egg trays, egg cartons, fruit trays, cup carriers, shoe trays, bottle trays and custom molded pulp products |
| Main process | Pulping, refining, pulp supply, vacuum forming, transfer, drying, hot pressing, stacking and packing |
| Main equipment | High-consistency hydraulic pulper, pulp homogenizer, pulp supply pump, rotary forming machine, egg tray moulds, air compressor, vacuum pump, negative-pressure tank, mould cleaning machine and forming control system |
| Capacity | To be confirmed according to machine model, mold quantity, tray design and drying system |
| Mold configuration | Customizable according to egg tray cell count, egg carton design or molded pulp product sample |
| Drying method | Natural drying, brick dryer, metal dryer, multi-layer dryer or customized drying system |
| Automation level | Semi-automatic or fully automatic egg tray machine configuration available by project requirement |
| Factory layout | Customized according to workshop size, drying method, water circulation and material flow |
| Power supply | To be confirmed according to destination country and selected machines |
| Customization | Capacity, mold, drying fuel, line layout, hot pressing and packing method can be customized |
How the Egg Tray Manufacturing Process Works
♻️ Waste Paper Preparation
Waste paper, carton paper or newspaper is collected and prepared as the raw material. Clean and suitable paper material helps improve pulp quality and finished egg tray strength.
- Remove unsuitable impurities before pulping.
- Material selection affects color, strength and surface quality.
🌊 Pulping and Fiber Separation
The hydrapulper mixes waste paper with water and breaks it into paper pulp. This is the first key step in the paper pulp egg tray making machine process.
- Pulp consistency should match the forming machine requirement.
- Stable pulping helps reduce uneven tray thickness.
🌀 Pulp Refining and Supply
The pulp is refined, mixed and transported through pulp tanks and pumps. Additives can be considered according to required tray strength, water resistance or surface performance.
- Pulp tanks and agitators keep fiber distribution stable.
- Water circulation helps reduce production water consumption.
🥚 Vacuum Forming on Egg Tray Molds
The forming machine uses vacuum suction to attach pulp fiber onto the egg tray mold surface. The wet egg tray shape is created according to the mold design.
- Mold design controls egg cell shape and tray dimensions.
- Vacuum stability affects tray thickness and edge quality.
🤖 Transfer to Wet Tray Conveyor
The wet formed trays are transferred from the forming mold to the transfer mold or conveyor. Smooth transfer helps prevent deformation before drying.
- Transfer accuracy affects tray shape consistency.
- Automation level depends on selected egg tray machine model.
🔥 Drying System
Wet egg trays are dried by natural drying, brick dryer, metal dryer or multi-layer dryer. Drying removes moisture and gives the tray enough strength for stacking and shipment.
- Drying method affects factory space, energy use and output.
- Fuel options and local climate should be considered.
📐 Hot Pressing and Reshaping
For smoother surface and better shape, dried trays can pass through a hot press machine. This step is especially useful for egg cartons, cup carriers and higher-quality molded fiber products.
- Hot pressing improves appearance and stacking stability.
- Pressure and temperature depend on product design.
📦 Stacking and Packing
Finished egg trays are stacked, counted and packed for storage or delivery. Automatic stacking and packing can reduce labor and improve production efficiency.
- Stacking height should match tray strength and package plan.
- Final inspection checks tray shape, dryness and strength.

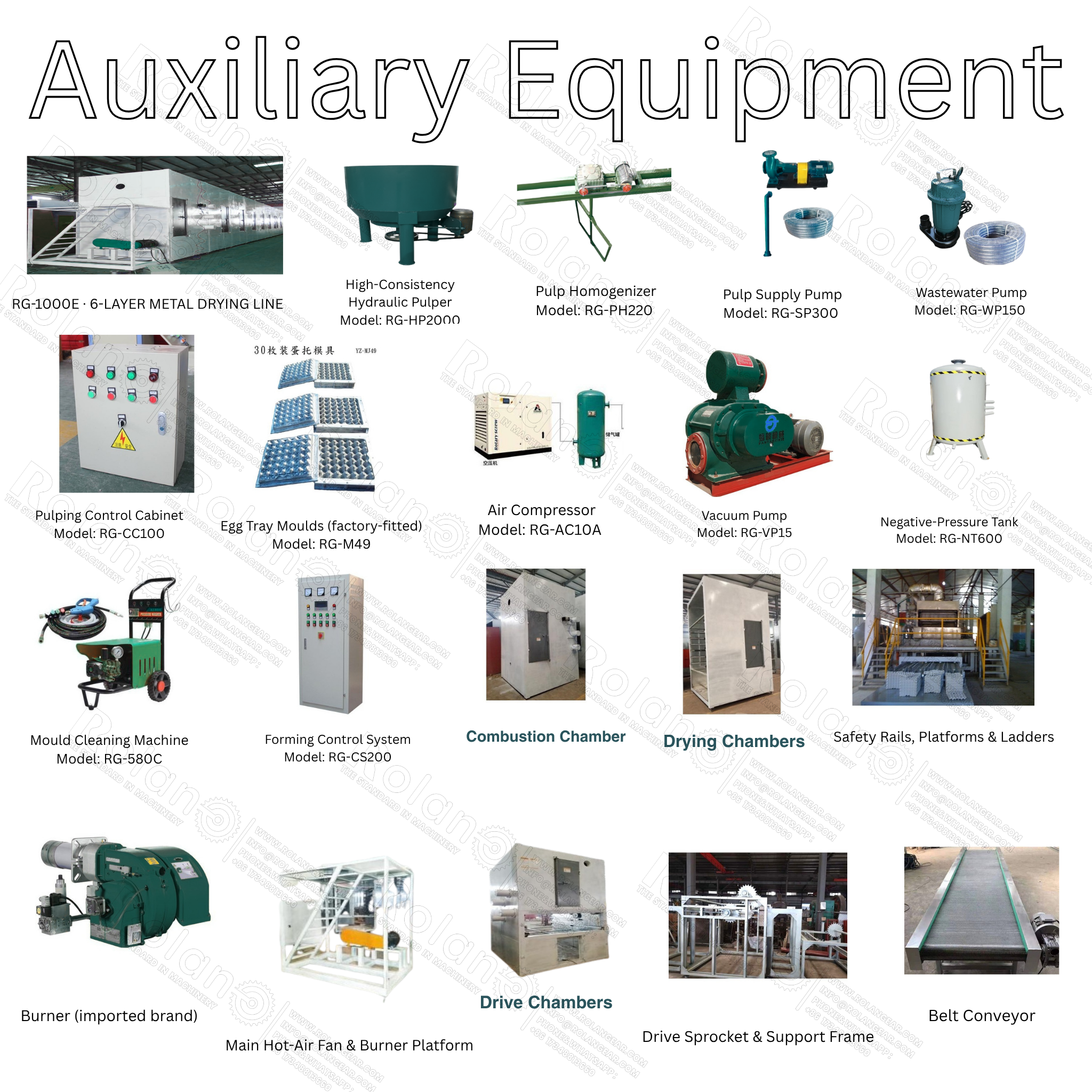

Main Equipment in the Egg Tray Production Line
♻️ High-Consistency Hydraulic Pulper
The hydraulic pulper is the starting point of the egg tray production line. It breaks recycled paper into pulp before the pulp is adjusted and supplied to the forming machine.
🌀 Pulp Homogenizing and Supply System
This section keeps pulp consistency stable and transfers prepared pulp to the forming area. It combines the pulp homogenizer and pulp supply pump as one clean production-line module for the customer page.

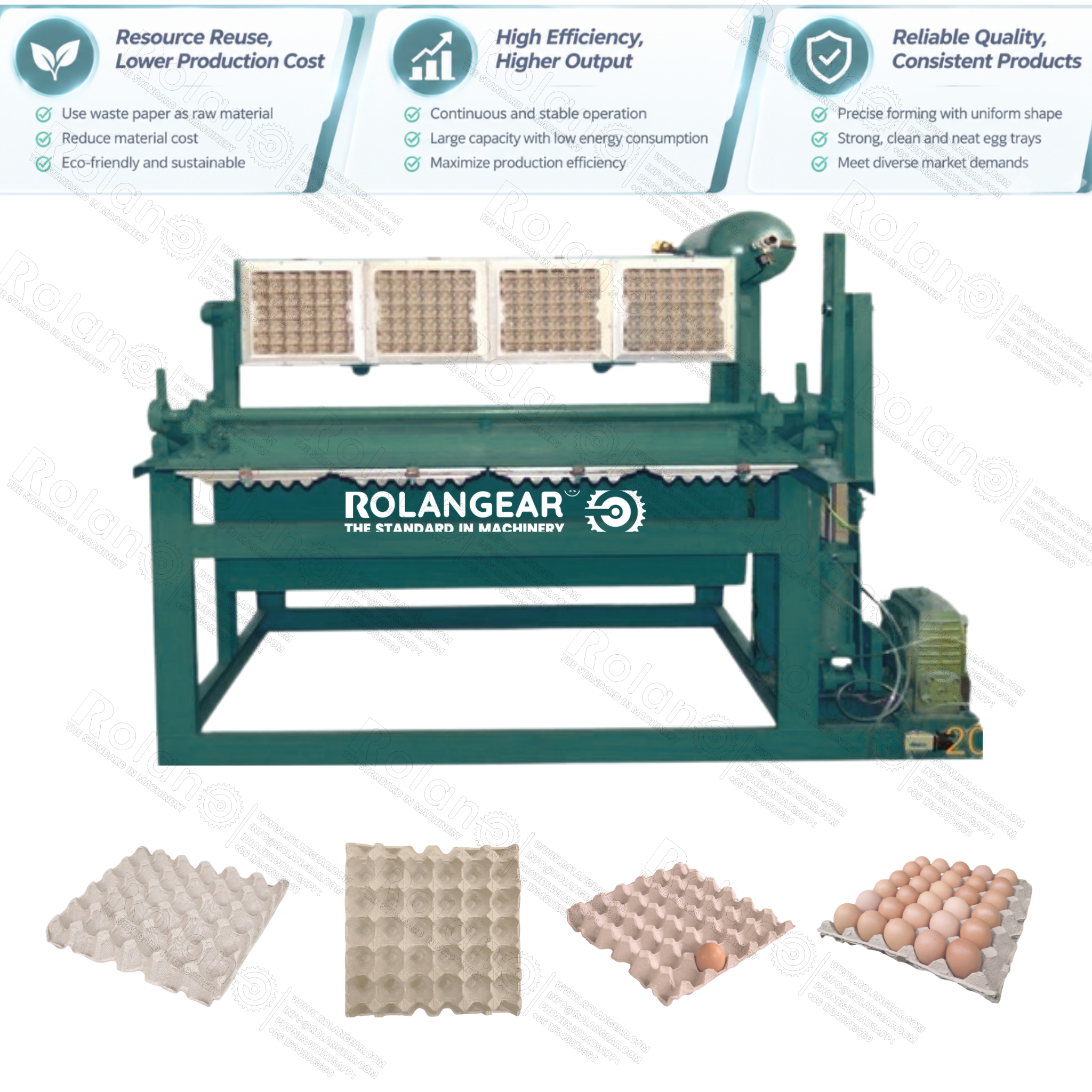

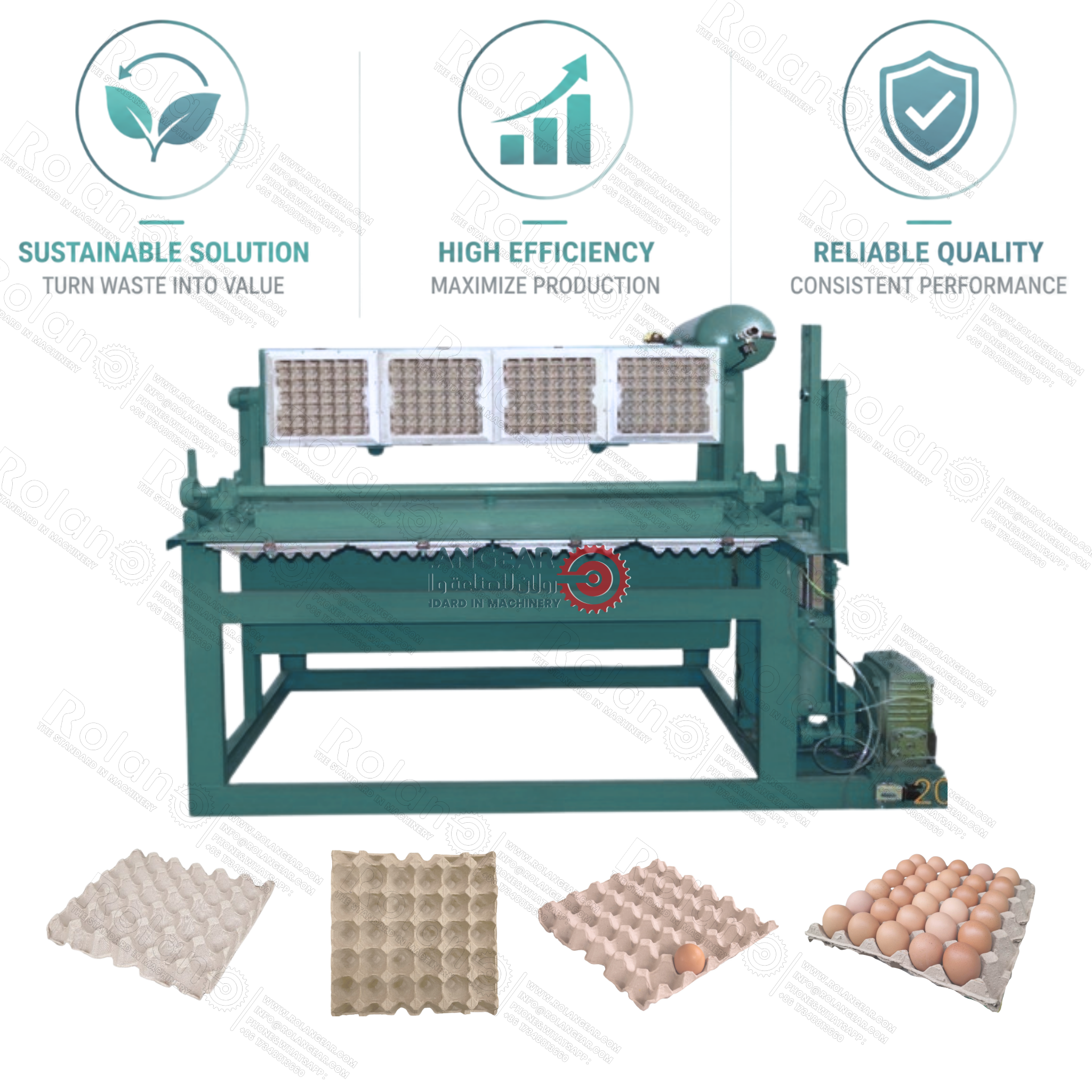

🥚 Rotary Egg Tray Forming Machine
The rotary forming machine is the core machine for shaping wet pulp into egg trays. It uses forming plates, rotary structure, pneumatic parts and reducer drive to support continuous molded pulp production.
🧩 Egg Tray Moulds
Factory-fitted engineering plastic moulds create the egg tray shape. The moulds are installed and tested on the machine before shipment, helping improve startup convenience for the buyer.
💨 Vacuum, Air and Forming Control System
The air compressor, vacuum pump, negative-pressure tank and forming control system support stable forming, transfer and operation control. This is a key support section for automatic egg tray forming.
What Egg Tray Properties Should Buyers Confirm?
Before ordering an egg tray production line, confirm the required molded pulp product properties so the pulping, forming, drying and hot pressing sections match the final package.
- Egg tray cell count, size and final product dimensions
- Tray weight, thickness, strength and stacking requirement
- Raw material type and recycled paper availability
- Natural drying, brick dryer, metal dryer or multi-layer dryer preference
- Need for hot pressing, smoother surface or special molded pulp product design
- Target capacity per hour or per day
Estimate Egg Tray Output
Use this simple estimator for discussion only: trays per hour × working hours × efficiency. Final capacity depends on forming machine model, mold quantity, drying capacity and tray design.
How Much Is an Egg Tray Production Line?
The egg tray making machine price depends on required capacity, forming machine model, mold quantity, product design, drying method, automation level, hot pressing requirement, water circulation system, installation support, electrical standard and factory layout. Send product details to receive an accurate quotation.
Suitable Products and Factory Applications
The line is suitable for recycled paper pulp molded packaging used in egg farms, poultry packaging, fruit packaging, foodservice packaging and protective packaging.
Egg Trays and Egg Cartons
Paper pulp egg trays and egg cartons for poultry farms, egg distributors, supermarkets and packaging suppliers.
Fruit and Food Packaging
Custom molded pulp trays can be used for fruit, cup carriers, beverage holders and foodservice packaging projects.
Protective Molded Pulp Packaging
With custom molds, the same pulp molding principle can support industrial packaging, bottle trays, shoe trays and protective inserts.
Egg Tray Production Line FAQ
What is an egg tray production line?
An egg tray production line is a complete machine system that turns waste paper into pulp, forms wet egg trays through vacuum molding, dries the trays, optionally hot presses them, and stacks or packs the finished products.
What is the egg tray manufacturing process?
The egg tray manufacturing process includes waste paper preparation, pulping, pulp refining, vacuum forming, wet tray transfer, drying, hot pressing or reshaping when required, stacking and packing.
What raw materials are used for paper egg tray production?
Common raw materials include waste paper, newspaper, carton paper, office paper and other suitable recycled paper. The final material selection affects tray color, strength and surface quality.
What is the capacity of an egg tray making machine?
Capacity depends on the forming machine model, mold quantity, tray design, drying capacity and automation level. Rolangear can recommend a suitable configuration after checking your target output and factory layout.
How much is an egg tray making machine?
The egg tray machine price depends on whether the buyer needs a small semi-automatic line or a fully automatic egg tray production line with pulping system, forming machine, dryer, hot press, stacker and packing equipment.
Can one egg tray machine make different molded pulp products?
Yes. By changing molds, the production line can be designed for egg trays, egg cartons, fruit trays, cup carriers and other molded pulp packaging products. Final feasibility depends on product size and machine configuration.
Which drying method should I choose for an egg tray line?
Natural drying requires lower investment but more space and depends on climate. Brick dryer, metal dryer and multi-layer dryer options improve production stability and are better for higher capacity automatic egg tray production lines.
Need an Egg Tray Production Line Quotation?
Send your target capacity, egg tray size, mold design, raw material, drying method, automation level, factory space and power supply. Rolangear can help confirm the suitable egg tray making machine configuration.
Specifications can be customized according to molded pulp product design, output target, drying method, workshop layout, fuel condition and factory power supply.
