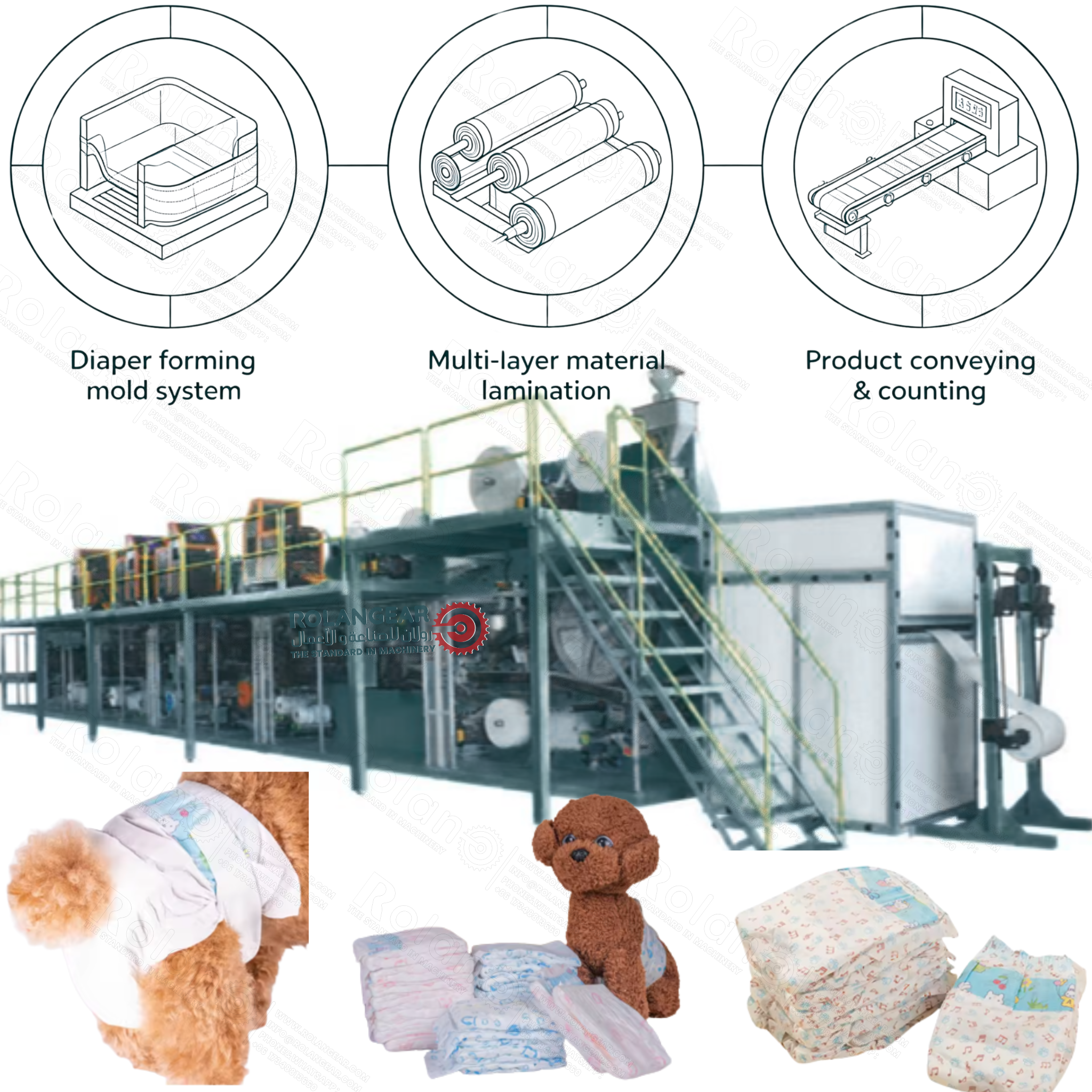

Full Servo Pet Diaper Machine Production Line
Build disposable pet diapers, dog diapers, female dog sanitary diapers, puppy training diapers, and customized absorbent pet-care products with stable servo control, accurate forming, and scalable production planning.
Complete Automatic Solution for Pet Diaper Manufacturing
The Full Servo Pet Diaper Machine Production Line is designed for manufacturers who want to produce disposable pet diapers, dog diapers, female dog sanitary diapers, puppy training diapers, pet incontinence diapers, and related absorbent pet hygiene products. It connects raw material unwinding, absorbent core preparation, topsheet and backsheet feeding, elastic application, forming, cutting, folding, counting, stacking, and finished output into one synchronized production system.
Pet diaper demand is growing as more families expect cleaner and more comfortable pet-care products for puppies, senior dogs, female dogs in heat, indoor living, travel care, and post-surgery protection. Rolangear helps customers plan the machine configuration around target diaper size, product structure, packaging method, workshop space, labor plan, and investment budget.
Products You Can Produce
Disposable Pet Diapers
For daily pet hygiene, indoor living, travel protection, puppy training, senior pet care, and medical recovery situations.
Dog Diapers and Female Dog Diapers
Can be planned with waist fit, tail-hole area, absorbent core placement, soft topsheet, and leak-protection structure.
Private-Label Pet Hygiene Products
Support printed backsheet, different absorbency levels, product size range, packaging style, and market positioning.
Pet Diaper Production Process
The line starts from stable material feeding, prepares the absorbent core, laminates product layers, applies elastic or fit-control materials, forms and cuts the diaper shape, then folds, counts, stacks, and discharges finished products for packing.
Raw Material Feeding
Feeds nonwoven, backsheet, pulp, SAP, elastic, tape, release paper, and required roll materials with stable tension.
Core Preparation
Builds the absorbent structure for urine absorption, holding capacity, softness, and finished diaper appearance.
Layer Lamination
Bonds topsheet, absorbent core, tissue paper, PE backsheet, and supporting layers into a continuous product web.
Elastic / Fit Application
Applies waist elastic, leg elastic, or side-protection materials according to the target pet diaper design.
Forming and Cutting
Forms the diaper shape, tail-hole area if required, and final product size with accurate cutting control.
Folding, Counting, Output
Prepares finished diapers for inspection, manual packing, or connection with downstream automatic packaging equipment.
Technical Advantages
Full Servo Coordination
Servo control improves synchronization between feeding, forming, cutting, elastic application, wrapping, and output sections.
Flexible Product Development
Machine planning can support different backsheet designs, absorbency levels, product sizes, and customized market positioning.
Easier Daily Operation
Operators can adjust parameters through a centralized interface and reduce mechanical adjustment work during production.
Stable Quality Control
Accurate alignment, cutting, elastic placement, and counting help reduce waste and improve finished product consistency.
Scalable Capacity
Configuration can be discussed for startup factories, OEM manufacturers, regional distributors, and industrial-scale production.
Project Planning Support
Rolangear supports product planning, layout discussion, machine configuration, and quotation direction before investment.
Main Technical Parameters
| Parameter | Specification |
|---|---|
| Machine Name | Full Servo Pet Diaper Machine Production Line |
| Production Speed | 400–800 m/min |
| Product Qualification Rate | ≥ 98% |
| Pet Diaper Size | S, M, L, XL, customized sizes available |
| Equipment Overall Size | Approx. 26 × 6 × 3 m |
| Equipment Weight | Approx. 60 tons |
| Machine Capacity / Installed Power | Approx. 250 kW |
| Finished Products | Pet diapers, dog diapers, disposable pet sanitary pants, training diapers, customized absorbent pet-care products |
Complete Production Line Configuration
The final configuration should be confirmed after reviewing the product sample, diaper size range, raw material structure, target capacity, packaging method, workshop space, and automation level.
Raw Material Unwinding & Feeding
Feeds topsheet nonwoven, tissue paper, PE backsheet, release paper, absorbent materials, and required roll materials with synchronization.
Absorbent Core Preparation
Prepares fluff pulp + SAP absorbent core structure according to absorbency requirement and pet diaper size.
Topsheet, Backsheet & Lamination
Combines topsheet, absorbent core, tissue paper, PE backsheet, and other layers into a stable continuous product web.
Elastic / Fit Application
Applies waist elastic, leg elastic, or fit-control materials according to the dog diaper product structure.
Product Forming & Cutting
Forms the pet diaper shape and performs accurate cutting for S, M, L, XL, or customized product sizes.
Folding, Counting & Finished Output
Folds, counts, stacks, and transfers finished products for manual packing or downstream packaging connection.
Product Materials
| No. | Material | Function / Application |
|---|---|---|
| 1 | Topsheet nonwoven | Soft skin-contact layer for comfort and liquid transfer. |
| 2 | Fluff pulp + SAP | Main absorbent core material for urine absorption and liquid retention. |
| 3 | Tissue paper | Core wrapping, liquid distribution, or support layer depending on product design. |
| 4 | PE backsheet | Leak-proof outer film or backsheet layer for product protection. |
| 5 | Release paper | Protective release layer used where adhesive or fastening structure is required. |
Capacity and Investment Planning
Startup Factory
Choose practical speed, controlled investment, flexible product testing, manageable labor, and stable product quality.
Growing Manufacturer
Plan higher automation, better material control, reliable output collection, and packaging connection for OEM or regional supply.
Industrial-Scale Project
Consider multi-shift production, automatic packaging, quality inspection tools, spare tooling, operator training, and maintenance planning.
- Machine configuration and servo automation level
- Product size range, absorbency level, tail-hole design, and tooling
- Raw material quality, packaging design, and expected waste rate
- Workshop layout, utilities, installation, training, and spare parts
Factory Layout Requirements
A good factory layout separates raw material storage, machine operation area, glue and utility area, finished product inspection, packing area, carton storage, and warehouse output. The main machine should have clear access on both sides for roll loading, alignment checking, cleaning, tooling replacement, maintenance, and inspection.
Utilities should be planned before installation, including voltage, installed power, compressed air, glue system requirements, ventilation, lighting, floor load, temperature, humidity, and safe cable routing. Rolangear can provide layout suggestions according to machine size, product type, workshop dimensions, and required automation level.
Why Invest in a Full Servo Pet Diaper Machine?
The pet-care market continues to expand as consumers spend more on comfort, hygiene, and convenience products. Disposable pet diapers solve practical problems for indoor living, travel, puppy training, senior pet care, female dogs in heat, and recovery care.
Investing in a full servo pet diaper machine allows a factory to control product quality, develop private-label designs, respond faster to market feedback, and reduce dependence on imported finished products. Stable forming, consistent cutting, reliable elastic placement, and accurate counting help improve product appearance and reduce complaints.
Why Rolangear
Rolangear focuses on industrial machinery and production line solutions for customers who need practical project support, not only a machine name. For a pet diaper production project, customers often need help with product positioning, machine configuration, material planning, capacity selection, layout discussion, installation preparation, and quotation comparison.
Rolangear can support customized production line planning based on product sample, size range, target capacity, workshop condition, and investment plan. The goal is to make the buying process clearer and help customers understand what they need before making a long-term investment decision.
FAQ
Can this machine produce different pet diaper sizes?
Yes. Different sizes can be planned according to tooling, material width, machine configuration, and product drawing. Customers should provide target sizes or samples before final quotation.
Can the line produce both dog diapers and other pet hygiene products?
It depends on product structure. Female dog diapers, disposable pet diapers, and some customized absorbent pet-care products can be discussed. Male wraps or very different shapes may require different tooling or machine design.
What information is needed for quotation?
Useful information includes product size, sample image, target capacity, raw material structure, packing format, workshop size, voltage, automation level, and budget range.
Is automatic packaging required?
Automatic packaging is optional. Some factories start with manual or semi-automatic packing, while larger projects connect automatic counting, stacking, and packaging equipment.
How should a new investor start?
Start with product research, market size, product samples, target price, expected output, raw material supply, and factory space. Rolangear can then help match the machine configuration to the business plan.
How much is a pet diaper production line?
The price depends on product specification, automation level, speed requirement, material structure, packaging method, machine configuration, and factory utilities. Contact Rolangear for a project-based quotation.
Plan Your Pet Diaper Manufacturing Project with Rolangear
Share your target pet diaper type, size range, absorbency level, package style, desired capacity, workshop layout, voltage, and investment plan. Rolangear can prepare a customized machine configuration and quotation direction for your project.
