RGT-574F Commercial Feed Production Line
The RGT-574F is a high-performance feed production system designed for commercial-scale operations, offering unmatched efficiency and reliability for aquatic and pet food manufacturers.
Key Features
- Production Capacity: 200-800kg/h continuous operation with adjustable output
- Precision Pelletizing: 1-12mm diameter range with ±0.2mm tolerance
- Power Options: 86-150kW motor configurations available
- Compact Layout: Efficient 25m × 4m production line footprint
- Automation: PLC control system with touchscreen interface
- Energy Efficient: IE4 class motors reduce power consumption

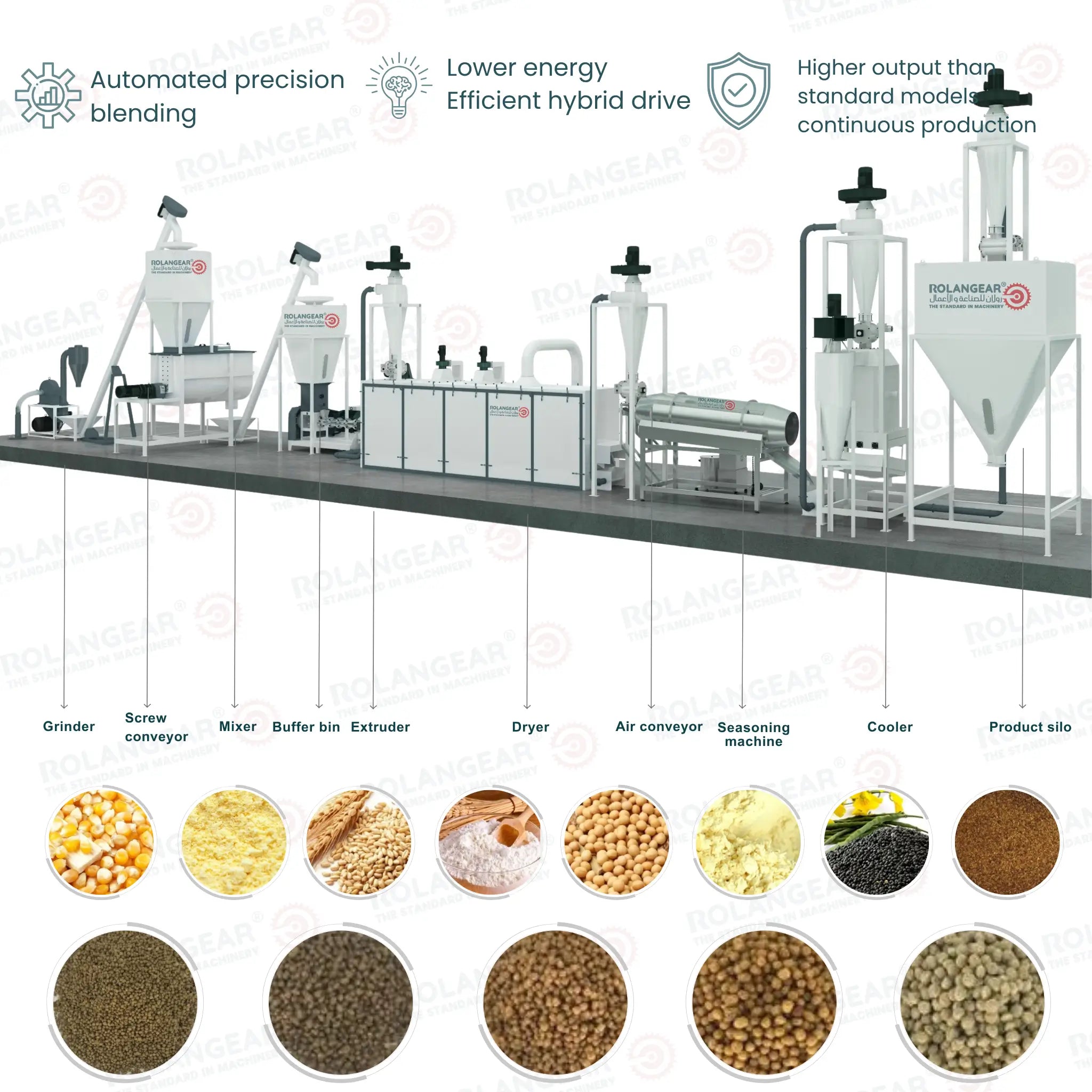

Core Systems Overview
Raw Material Handling
- Automatic weighing and feeding system
- Dust collection and filtration
- Moisture control with real-time monitoring
- Ingredient blending with ±1% accuracy
Extrusion System
- Twin-screw extruder with variable speed
- Precision temperature control (±2°C)
- Steam injection 0-10bar adjustable
- Quick-release die assembly
Drying Cooling
- Multi-stage horizontal dryer
- Temperature range: 40-120°C
- Counter-flow cooling system
- Final moisture content: 8-12%
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | RGT-574F |
| Production Capacity | 200-800kg/h (adjustable) |
| Power Requirements | 86-150kW (3-phase, 380V/50Hz) |
| Pellet Size Range | 1-12mm diameter (interchangeable dies) |
| Pellet Tolerance | ±0.2mm diameter, ±1mm length |
| Steam Consumption | 50-100kg/h @ 6-8bar |
| Footprint | 25m (L) × 4m (W) × 3.5m (H) |
| Weight | Approx. 8,000kg |
| Operators Required | 2-3 (standard operation) |
| Control System | PLC with 10" touchscreen, recipe storage |
Advanced Features
Smart Control System
- Recipe management with 100+ storage slots
- Real-time production monitoring
- Automatic fault diagnosis
- Remote monitoring capability
Quality Assurance
- In-line moisture detection
- Pellet durability testing
- Automatic weight control
- Temperature profiling
Safety Features
- Emergency stop system
- Overload protection
- Temperature safety cutoffs
- Guarded moving parts
Optional Accessories
- Coating System: For fat/oil application (up to 8% addition)
- Screening System: For precise size classification
- Packaging System: Automatic weighing and bagging
- Dust Collection: Enhanced filtration system
- Steam Generator: 200kg/h capacity
- Spare Parts Kit: Includes wear parts for 6 months operation
Installation Service
- Factory acceptance testing available
- On-site installation supervision
- Operator training program
- 12-month warranty
- Worldwide service network
- Preventive maintenance contracts
