Complete Wire Mesh Production Line Guild: Process, Equipment, Cost, Capacity
Wire Mesh Making Machine for Welded Steel Mesh Production
Complete Line Matching
Configure wire payoff, straightening, mesh welding, pulling, cutting and stacking or rolling as one coordinated welded wire mesh production line.
Custom Mesh Specifications
Wire diameter, mesh opening, panel width, mesh length, roll length and welding pitch can be discussed according to your target product.
Industrial Mesh Applications
Suitable for welded mesh panels, reinforcing mesh, fence mesh, cage mesh, construction mesh and general steel wire mesh products.
Wire Mesh Production Line Specifications
| Line type | Automatic welded wire mesh production line / steel wire mesh welding line |
| Suitable material | Low-carbon steel wire, galvanized wire, stainless steel wire or other suitable metal wire according to product requirement |
| Finished products | Welded wire mesh panel, reinforcing mesh, fence mesh, cage mesh, construction mesh and welded mesh roll |
| Main process | Wire payoff, wire straightening, cross-wire feeding, resistance welding, mesh pulling, mesh cutting, stacking or rolling |
| Main equipment | Touch screen control system, Schneider switch with Mitsubishi PLC, Omron power supply, Schneider transformer, electronics section, wire pay-off stand, counter and machine operation/safety controls |
| Wire diameter | To be confirmed according to product sample and machine model |
| Spacing adjustment | Barb space / product spacing shown as adjustable: 3, 4, 5 or 6 inches, depending on final product setup |
| Mesh width and length | Customizable according to panel size, roll size and factory production plan |
| Automation level | Semi-automatic or fully automatic configuration depending on line layout and output requirement |
| Power supply | To be confirmed according to destination country and selected welding system |
| Customization | Wire diameter range, mesh size, welding transformer, cutting method, stacking method and rolling option can be customized |
How the Wire Mesh Production Line Works
🧵 Wire Coil Loading and Payoff
Longitudinal wire coils are loaded on payoff racks. The payoff system feeds wire smoothly into the straightening section.
- Wire coil quality affects feeding stability.
- Payoff tension should match the welding line speed.
📏 Wire Straightening and Cutting
Wires are straightened to reduce bending and improve mesh flatness. Cross wires may be cut to the required width before entering the welding area.
- Straight wire improves welding position accuracy.
- Cutting length should match mesh width and product drawing.
➡️ Longitudinal and Cross-Wire Feeding
Longitudinal wires and cross wires are positioned according to the required mesh opening and welding pitch.
- Feeding accuracy controls mesh spacing.
- Servo or pneumatic feeding can be selected by configuration.
⚡ Resistance Welding
The wire mesh welding machine welds each intersection by controlled welding current and pressure to create a strong welded mesh structure.
- Welding current should match wire diameter and material.
- Stable electrode pressure helps maintain welding quality.
🚀 Mesh Pulling and Length Control
The pulling system moves the welded mesh forward and controls the final mesh length or roll length.
- Accurate pulling helps keep mesh opening consistent.
- Length control affects panel size and downstream cutting.
✂️ Mesh Cutting
The cutting system cuts welded mesh into panels or prepares it for rolling according to the final product type.
- Panel cutting should match project size requirements.
- Clean cutting improves stacking and shipment quality.
📦 Stacking or Rolling
Finished wire mesh is stacked as panels or rolled into coils, depending on the selected production line configuration.
- Panel stacking is suitable for construction and reinforcement mesh.
- Rolling is useful for fence mesh and flexible mesh supply.

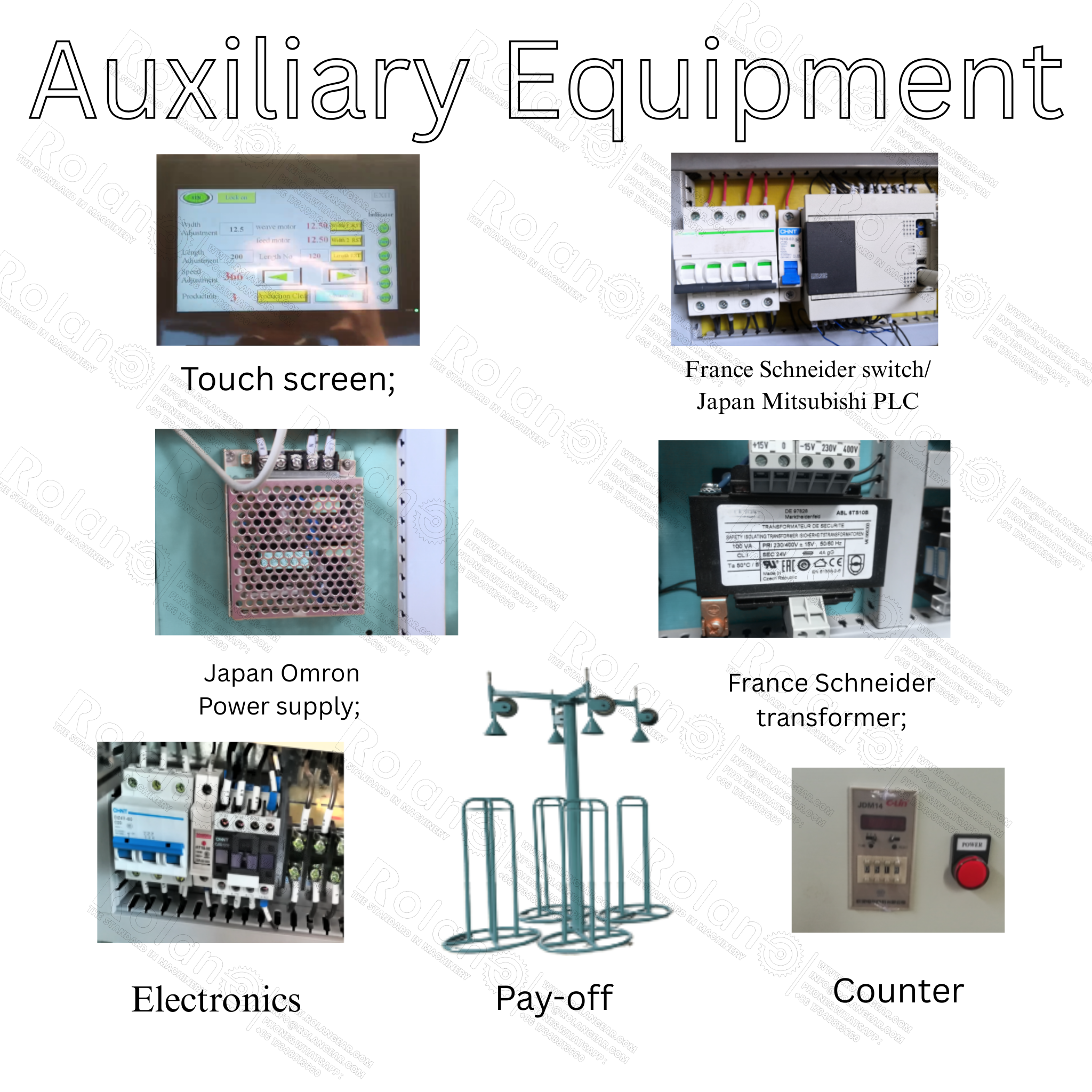

Main Equipment and Control Parts in the Wire Mesh Production Line
🖥️ Touch Screen Control Panel
The touch screen gives operators a clear interface for machine settings and production operation. It helps make the machine easier to operate and supports faster adjustment during production.
⚡ PLC and Electrical Switch System
The electrical system uses branded electronic components shown in the document, including Schneider switch components and Mitsubishi PLC, helping improve control stability and machine service life.
🔌 Power Supply and Transformer
The document shows an Omron power supply and Schneider transformer. The electric relay can bear up to 660V tolerance, helping protect the machine in areas with unstable voltage.
🧵 Wire Pay-Off Stand
The pay-off stand holds wire coils and guides wire feeding into the machine. It is important for smooth production and helps reduce wire snarls during operation.
🔢 Counter
The counter and operation controls help operators monitor production and start or stop the machine easily. The document also mentions obvious safety signs and guide systems for safer, smoother operation.
What Wire Mesh Details Should Buyers Confirm?
Before ordering a wire mesh production line, confirm the required product details so the welding machine and auxiliary equipment match the final production plan.
- Wire material and wire diameter range
- Mesh opening, welding pitch and panel width
- Finished product type: panel mesh or roll mesh
- Target production speed and automation level
- Cutting, stacking, rolling and packing requirements
Estimate Wire Mesh Output
Use this estimator for discussion only. Final output depends on welding speed, mesh opening, wire diameter, mesh width and line configuration.
SEO Buyer Search Terms Covered
This product page naturally targets popular buyer searches such as wire mesh production line, wire mesh manufacturing process, wire mesh making machine, wire mesh making machine price, wire mesh manufacturing machine, steel mesh making machine, welded wire mesh machine, welded wire mesh machine for sale, automatic welded wire mesh machine, wire mesh welding machine, wire mesh welding machine price, steel mesh welding machine, wire mesh machine price and automatic wire mesh machine.
How Much Is a Wire Mesh Production Line?
The wire mesh machine price depends on wire diameter range, mesh width, mesh opening, welding transformer quantity, automation level, straightening system, cutting method, stacking or rolling option, electrical standard and installation support. Send product details to receive an accurate quotation.
Suitable Products and Factory Applications
The line is suitable for welded wire mesh used in construction, fencing, agriculture, animal cages, reinforcement and industrial protection.
Construction and Reinforcement Mesh
Welded wire mesh panels for building reinforcement, concrete mesh and construction material supply.
Fence and Security Mesh
Wire mesh panels or rolls for fencing, safety barriers, farm fencing and industrial protection.
Cage and Agricultural Mesh
Mesh for animal cages, poultry cages, garden mesh, storage racks and agricultural applications.
Wire Mesh Production Line FAQ
What is a wire mesh production line?
A wire mesh production line is a machine system that feeds steel wire, straightens it, welds cross and longitudinal wires, pulls the mesh forward, cuts it to length and stacks or rolls the finished mesh.
What is the welded wire mesh manufacturing process?
The process includes wire coil payoff, wire straightening, cross-wire feeding, resistance welding, mesh pulling, cutting, stacking or rolling and final product inspection.
What materials can be used for wire mesh production?
Common materials include low-carbon steel wire, galvanized wire, stainless steel wire and other suitable metal wire. Final material choice depends on product application and welding requirements.
Can one machine make different mesh sizes?
Yes, many configurations can support adjustable mesh opening, wire diameter and mesh length. The exact adjustment range must be confirmed according to machine model and product sample.
How much is a wire mesh welding machine price?
The price depends on wire diameter, mesh width, welding speed, transformer quantity, automation level, cutting method, stacking or rolling system and customization requirements.
Can the line produce both mesh panels and mesh rolls?
It depends on the selected output handling system. Panel lines use cutting and stacking, while roll mesh production requires a rolling system. Rolangear can help configure the suitable option.
Need a Wire Mesh Production Line Quotation?
Send your wire diameter, material, mesh opening, mesh width, panel length or roll length, target output and automation requirement. Rolangear can help confirm the suitable wire mesh making machine configuration.
Specifications can be customized according to wire material, mesh size, output target, welding method, workshop layout and factory power supply.
