4‑Cavity PET Bottle Blowing Machine
The listed price is a deposit only. The final price may vary based on your specific requirements and options. Contact us for a customized quote.4o mini
Please be aware that the listed price is a deposit only. The final price of the machine may vary based on your specific requirements, configurations, and optional features. Once we receive your detailed needs, we will provide a full quotation accordingly. Feel free to contact us for a customized offer. make it shorter
Contact us for the catalogs of un-uploaded products
Directly Purchase: (7-10 Days)
Customize: (8-12 Days)

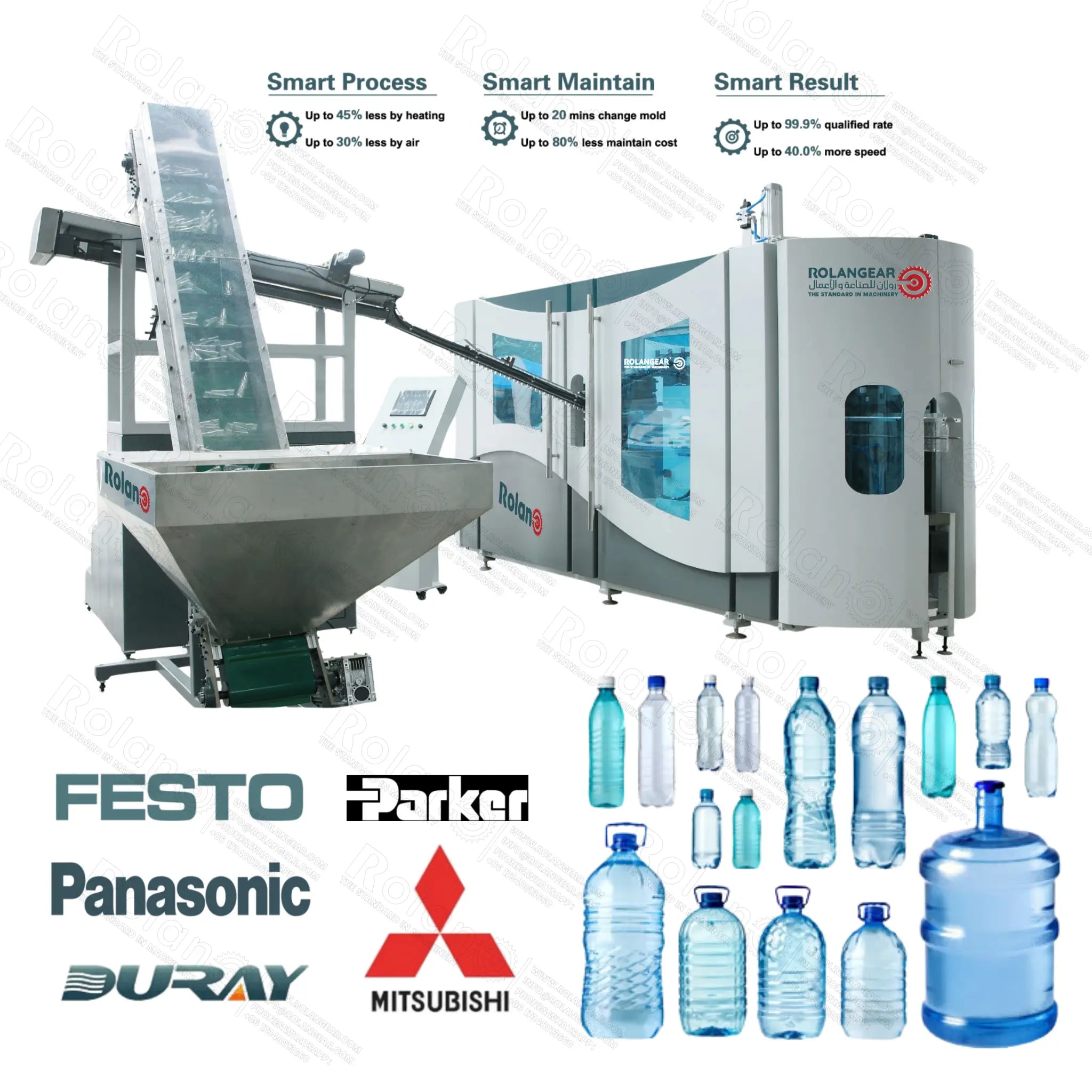

4‑Cavity PET Bottle Blowing Machine
Boost productivity and cut costs with Rolangear's advanced PET bottle blower—featuring energy-smart design, full servo automation, and lightning-fast mold changes.
Smart Advantages
- Smart Process: Save up to 45% on heating, 30% less air usage
- Smart Maintenance: Mold change in 20 minutes, maintenance cost ↓ by 80%
- Smart Results: Achieve 99.9% bottle qualification and up to 40% faster speed
Hidden Cost Reduction
Since 70% of energy is consumed by the blower in bottling lines, RolanGear’s efficient systems slash power use—delivering more bottles at lower cost.
Specifications & Capacity
Model: 4 Cavity, 6500–7200 BPH (0.5 L), 28 mm neck
| Part | Description | Qty | Power (kW) |
|---|---|---|---|
| A – Preform Feeding System | |||
| 1 | Preform hopper | 1 set | 4.7 |
| 2 | Preform elevator | 1 set | – |
| 3 | Sorter & recycle tunnel | 1 set | – |
| 4 | 4‑cavity servo blowing machine | 1 set | – |
| B – Bottle Mold | |||
| 8 | Quick-change mold (750 ml) | 1 set | 3.2 |
| C – High-Pressure Air System | |||
| 9 | Air system control cabinet | 1 set | 1.8 |
| 10 | Piston compressors (2 m³/min, 30 bar) | 3 sets | – |
| 11 | Copper-circuit air cooling | 1 set | – |
| 12 | Air dryer | 1 set | – |
| 13 | Air filters (x2) | 2 sets | – |
| 14 | Oil separator | 1 set | – |
| 15 | Filter-dryer combo (auto drain) | 1 set | – |
| 16 | Air storage tanks (1 m³, 30 bar) | 2 units | – |
| D – Water Cooling System | |||
| 17 | 5 HP chiller (air‑cooled) | 1 unit | 1.2 |
| 18 | 5 HP oven cooler (air‑cooled) | 1 unit | 1.2 |
Why It’s Smart
- Compact 38 mm heating zone—with one heating box, slashing energy use by 50%+
- Continuous, flip-free preform heating ensures ≥99.8% qualified bottles
- Cooling tunnel protects necks from heat damage
- Mechanical cam integrates mold movements into one action—robust & simple
- Full servo control—no low‑pressure compressor needed
- Built-in positioning grooves enable fast installation
- Quick mold change—just 20 minutes for high uptime
Premium Mold Highlights
- Fast-change aluminum mold—lightweight, durable, and easy to handle
- Precision-engineered cavity—clean bottle finish, minimal seams
- Hard-anodized surface ensures longevity
- S136 stainless base plate with mirror-polished interior
Machine specification:
|
Cavity number |
4 |
|
|
Capacity |
6500-7500BPH@500L |
|
|
Bottle specification |
Applicable product: PET bottle |
|
|
|
Applicable bottle volume: 200ml-2000ml Max 2L |
|
|
|
Applicable bottle neck diameter:25-30mm short neck |
|
|
Electricity specification |
Installation power: 48kw |
|
|
|
Operating power: 25kw |
|
|
Machine specification
|
Machine total weight: 3500Kg |
|
|
|
Machine dimension: L3800xW1300xH2300mm |
|

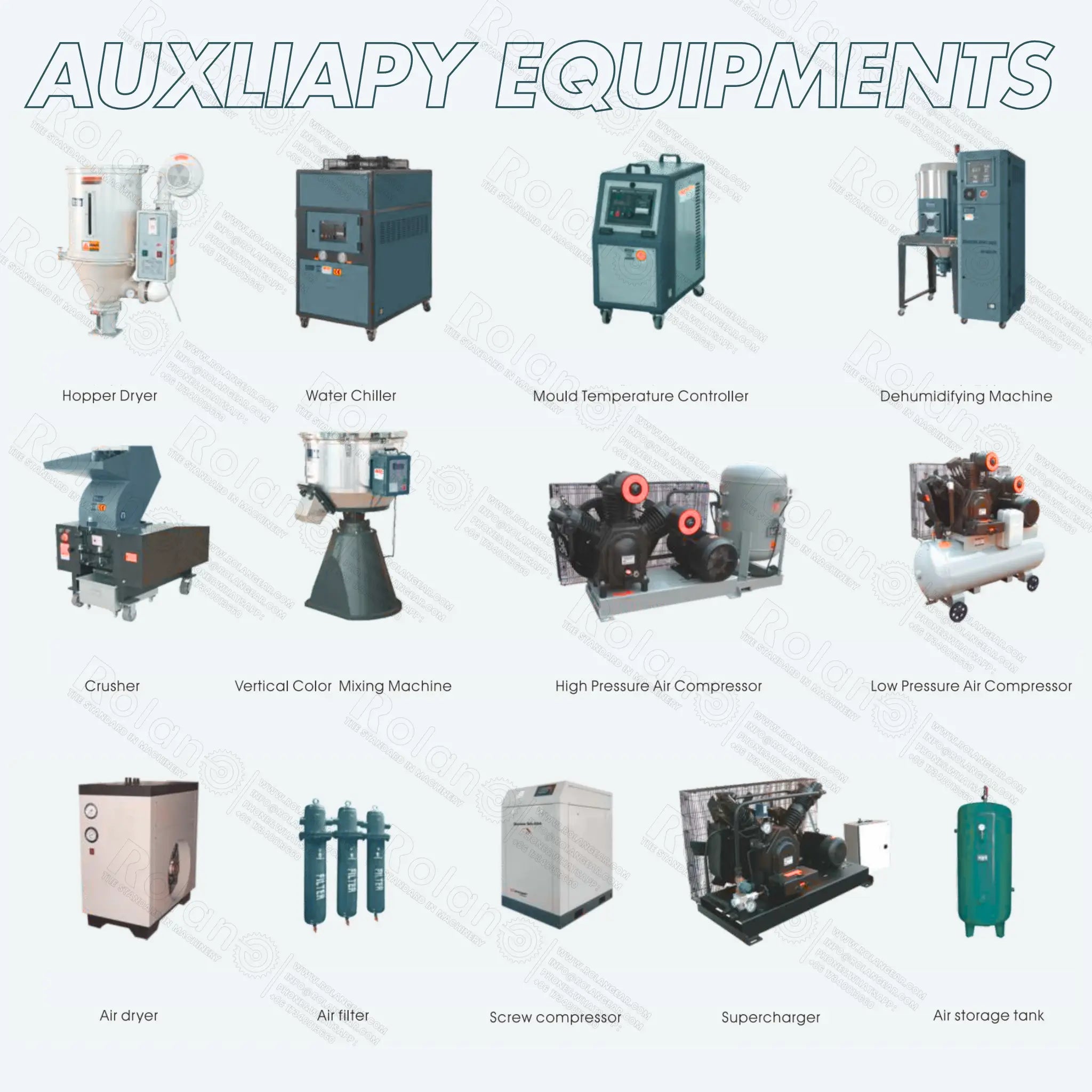

Automatic Blow Molding Machine Auxiliary Equipment
Complete your production line with these essential support systems
Hopper Dryer
Pre-dries plastic materials to remove moisture before processing, ensuring optimal material quality and preventing defects in finished products.
Water Chiller
Maintains precise temperature control for cooling molds and machinery, critical for consistent product quality and cycle time optimization.
Mould Temperature Controller
Regulates mold temperature with high precision to ensure uniform wall thickness and superior surface finish on blown containers.
Dehumidifying Machine
Controls humidity in production areas to prevent moisture absorption by hygroscopic materials like PET during processing.
Crusher
Recycles production scrap and rejects by grinding them into reusable granules for cost-effective material recovery.
Vertical Color Mixing Machine
Ensures homogeneous blending of masterbatch colors with virgin material for consistent product coloration.
High Pressure Air Compressor
Generates the high-pressure air (25-40 bar) required for the blow molding process to form container shapes.
Low Pressure Air Compressor
Provides low-pressure air (8-10 bar) for machine operations like part ejection and conveyor systems.
Air Dryer
Removes moisture from compressed air to prevent water spots and defects in blown containers.
Air Filter
Purifies compressed air by removing oil, dust and particulates that could contaminate products.
Screw Compressor
Provides continuous, energy-efficient compressed air supply for high-volume production environments.
Supercharger
Boosts air pressure when additional blowing force is required for large or complex container designs.
Air Storage Tank
Stabilizes air pressure and provides reserve capacity to handle peak demand during production cycles.

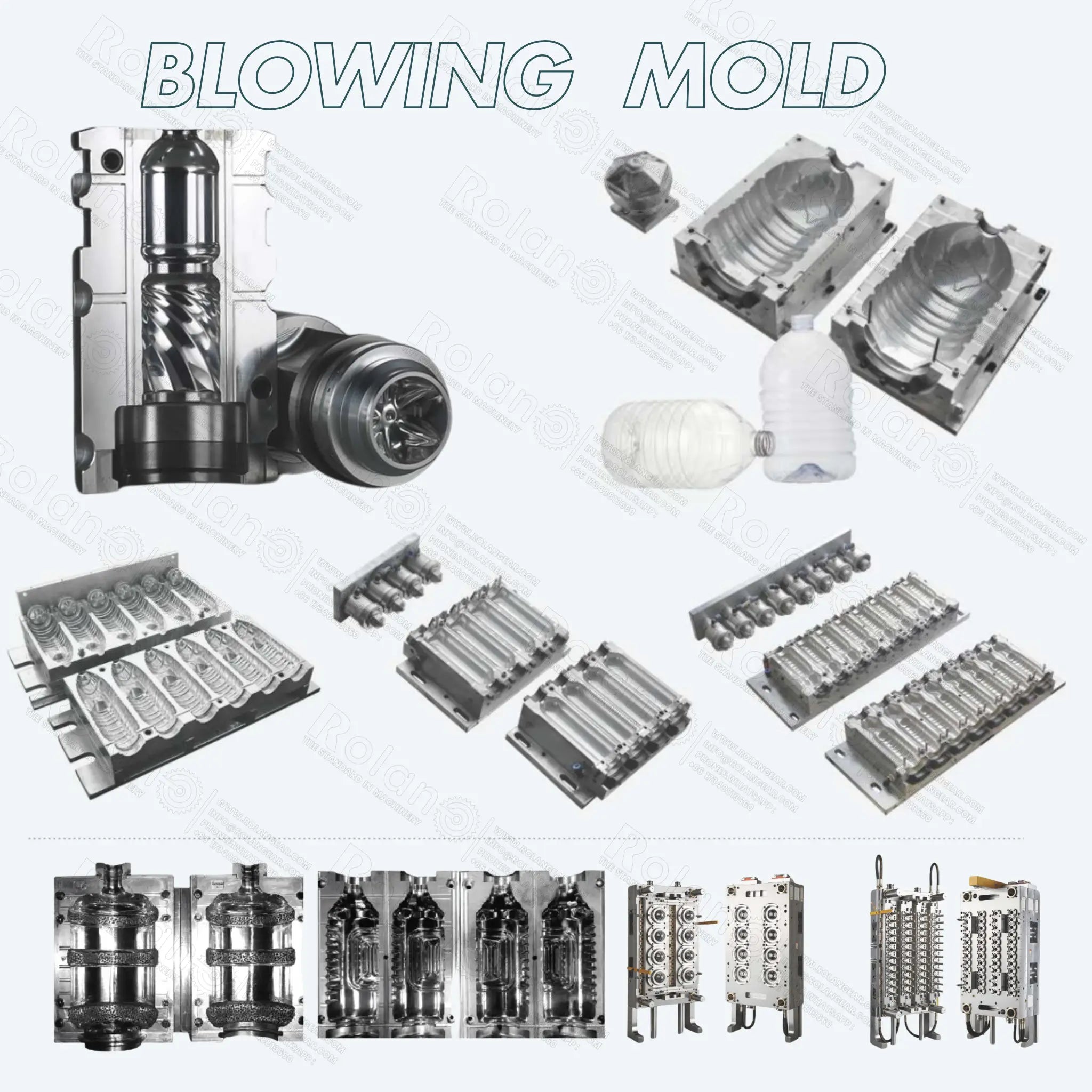

PET Blowing Molds for All Container Types
High-precision molds tailored for your specific container requirements
Water Bottle Molds
- Standard 500ml-5L sizes
- Sports cap compatible designs
- Lightweight & durable constructions
Juice Bottle Molds
- Wide-mouth designs
- Handle options available
- Enhanced structural integrity
Carbonated Drink Molds
- Pressure-resistant designs
- PCO28/PCO38 neck finishes
- Optimized for bottle strength
Edible Oil Molds
- 500ml-5L capacities
- Drip-free pouring spouts
- Reinforced base designs
Custom Specialty Molds
- Unique shapes & designs
- Brand-specific contours
- Ergonomic grip patterns
Pharmaceutical Molds
- 100ml-1L medical bottles
- Child-resistant caps
- Tamper-evident features
Our Mold Advantages
Fast cooling channels for reduced cycle times
Quick-change systems for multi-product lines
Precision-cut cavities for consistent wall thickness
Durable stainless steel/aluminum construction
Choose Rolangear for smarter, faster, cost-effective bottle production. Contact us to get started today!
Choose options
Ready To Automate Your4‑Cavity PET Bottle Blowing Machine?
Contact Rolangear Machinery today for a quote, customization options, or a free consultation.
