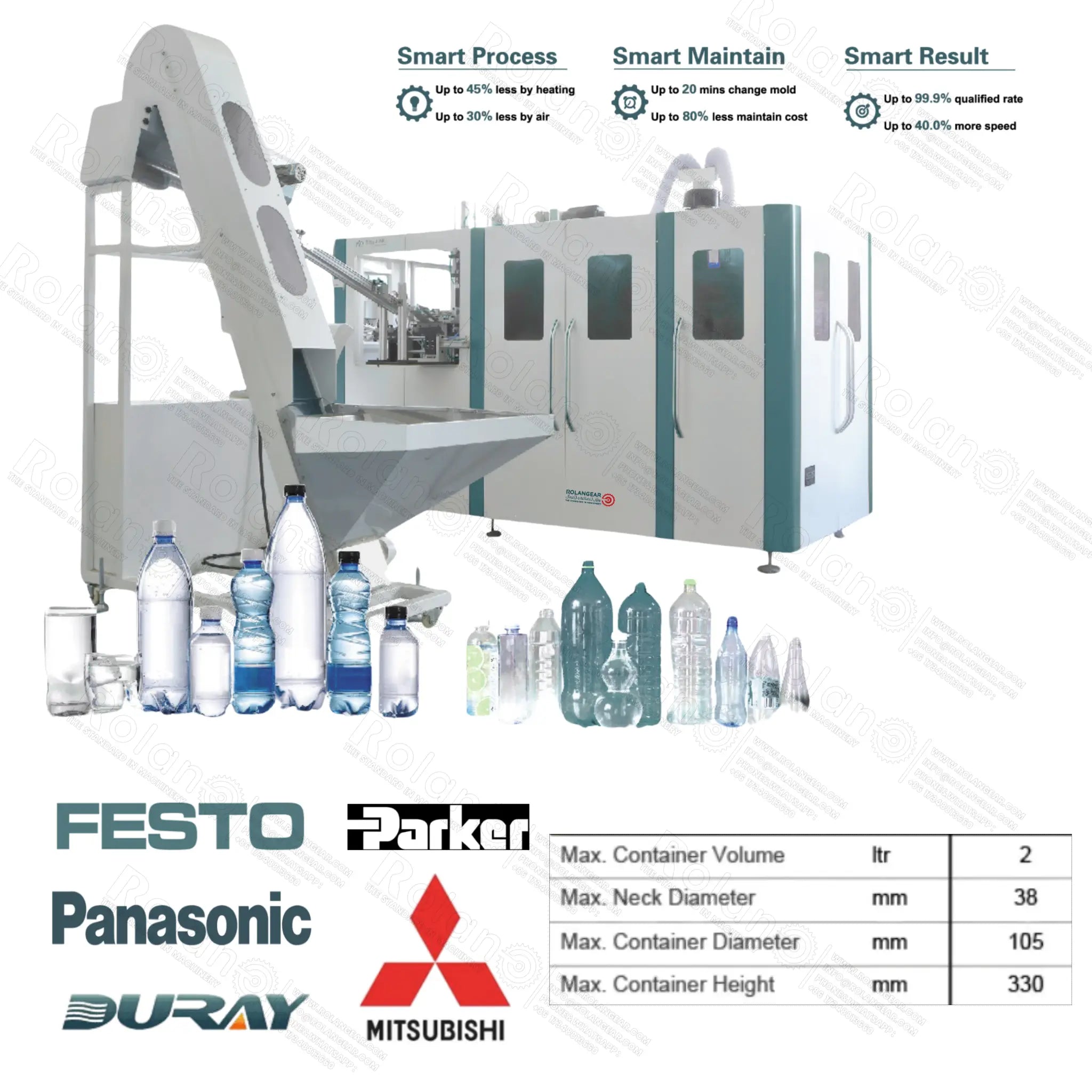

Automatic Blow Molding Machine 2 Cavity 1/2L
The listed price is a deposit only. The final price may vary based on your specific requirements and options. Contact us for a customized quote.4o mini
Please be aware that the listed price is a deposit only. The final price of the machine may vary based on your specific requirements, configurations, and optional features. Once we receive your detailed needs, we will provide a full quotation accordingly. Feel free to contact us for a customized offer. make it shorter
Contact us for the catalogs of un-uploaded products
Directly Purchase: (7-10 Days)
Customize: (8-12 Days)
The Automatic Blow Molding Machine 2 Cavity 1/2L is designed for efficient production of PET bottles with a capacity of 0.6 liters per bottle. Featuring two cavities, this model can produce between 2,000 to 2,500 bottles per hour, balancing high output with consistent quality. For larger bottle sizes, the RG-2L-2 and RG-2L-4 models offer two and four cavities respectively, with capacities ranging from 2,000 to 6,000 bottles per hour. This machine is ideal for high-volume production lines requiring reliable performance and precise molding control.
Complete PET Bottle Production Line
The Rolangear 2-cavity automatic blow molding machine is part of a complete PET bottle manufacturing solution that includes:
- 1 Preform Loading System: Automatic hopper with orientation correction
- 2 Infrared Heating Station: 8-zone heating with precise temperature control (±1°C)
- 3 Blow Molding Unit: High-pressure blowing with 3.0MPa capacity
- 4 Output Conveyor: 300mm wide stainless steel belt with air cooling
- 5 Quality Control: Integrated leak detection and weight sorting
- 6 Air Compressor: 30HP oil-free compressor included
- 7 Chiller System: 5HP water chiller with temperature stability
- 8 Control Panel: Siemens PLC with 10" color touchscreen
Turnkey Solution: Our complete line comes pre-assembled and tested, requiring only power, compressed air, and cooling water connections for immediate production. Includes 3 days of on-site training for your operators.
Technical Parameters
| RG-0.6L-2 | RG-2L-2 | RG-2L-4 | |
|---|---|---|---|
| Host Machine Parameter | |||
| Cavity cavities | 2 | 2 | 4 |
| Clamping Force KG | 35000 | 45000 | 48000 |
| Mold Route mm | 90 | 110 | 125 |
| Stretching Rod Route mm | 300 | 400 | 3300 |
| Bottom Mold Route mm | 50 | 50 | 50 |
| Bottle Spacing mm | 76.2 | 114.3 | 114.3 |
| Bottle Preform Number pcs | 52 | 52 | 78 |
| Products Parameter | |||
| Max Capacity ml | 600 | 1500 | 1500 |
| Max Bottle Body Height mm | 260 | 330 | 330 |
| Max Bottle Body Diameter mm | 68 | 105 | 105 |
| Max Bottle Preform Height mm | 100 | 140 | 140 |
| Max Bottle Mouth Diameter mm | 38 | 38 | 38 |
| Capacity B/H | 2000-2500 | 2000 | 4000-6000 |
| Electrical Parameter | |||
| Heating Oven Quantity PCS | 4+4 | 4+4 | 5+5 |
| Heating Lamp Quantity PCS | 2+8 | 4+9 | 5+9 |
| Heating Configuration Power KW | 48 | 48 | 60 |
| Total Power Capacity KW | 55 | 55 | 72 |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ |
| Air Source Parameter | |||
| Working Pressure MPA | 0.7-0.9 | 0.7-0.9 | 0.7-0.9 |
| Blowing Pressure MPA | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 |
| Air Capacity Consumption m³/min | 2.4/30 | 2.4/30 | 5.0/30 |
| Total Power KW | 30 | 30 | 55 |
| Cooling Chiller Parameter | |||
| Temperature | 9-13 | 9-13 | 9-13 |
| Pressure MPA | 0.4 | 0.4 | 0.4 |
| Rated Power HP | 3 | 3 | 5 |
| Dimension | |||
| Host Machine Size MM | 2700*1800*2200 | 3300*1800*2000 | 4800*2200*2200 |
| Weight T | 2 | 2.5 | 3.5 |
Overview
Our 2-cavity automatic blow molding machine is designed for high-efficiency production of 1/2L PET bottles, ideal for water, juices, carbonated drinks, and other beverage packaging solutions. With a production capacity of 2000-2500 bottles per hour, this industrial-grade machine combines German engineering with smart automation for maximum output with minimal energy consumption.
Key advantages for your production line: 40% energy savings compared to conventional machines, 15% reduced power consumption through air-recycling technology, and touchscreen controls for precise operation.
Common Applications
This complete production line is ideal for manufacturing:
- Mineral Water Bottles: 500ml, 1L standard round bottles
- Carbonated Drink Bottles: Pressure-resistant designs
- Juice Bottles: Wide-mouth and handle options
- Edible Oil Containers: Food-grade PET with tamper evidence
- Pharmaceutical Bottles: Consistent wall thickness
Customization Available: We can configure the line for special bottle shapes, custom neck finishes, or unique capacity requirements.
Frequently Asked Questions
Q: What's the minimum space required for installation?
A: The complete line requires approximately 6m × 4m floor space with 3m ceiling height, plus additional area for raw material storage.
Q: What power supply is needed?
A: The system requires 380V 3-phase power with 55KW capacity. We provide step-down transformers for different voltage requirements.
Q: How many operators are needed?
A: The automated line typically requires just 1-2 operators for continuous production.
Q: What's the lead time for delivery?
A: Standard configurations ship within 15 working days after order confirmation. Custom solutions may require 25-30 days.
Q: What maintenance is required?
A: Daily lubrication and monthly inspection of critical components. We provide a detailed maintenance schedule and video tutorials.

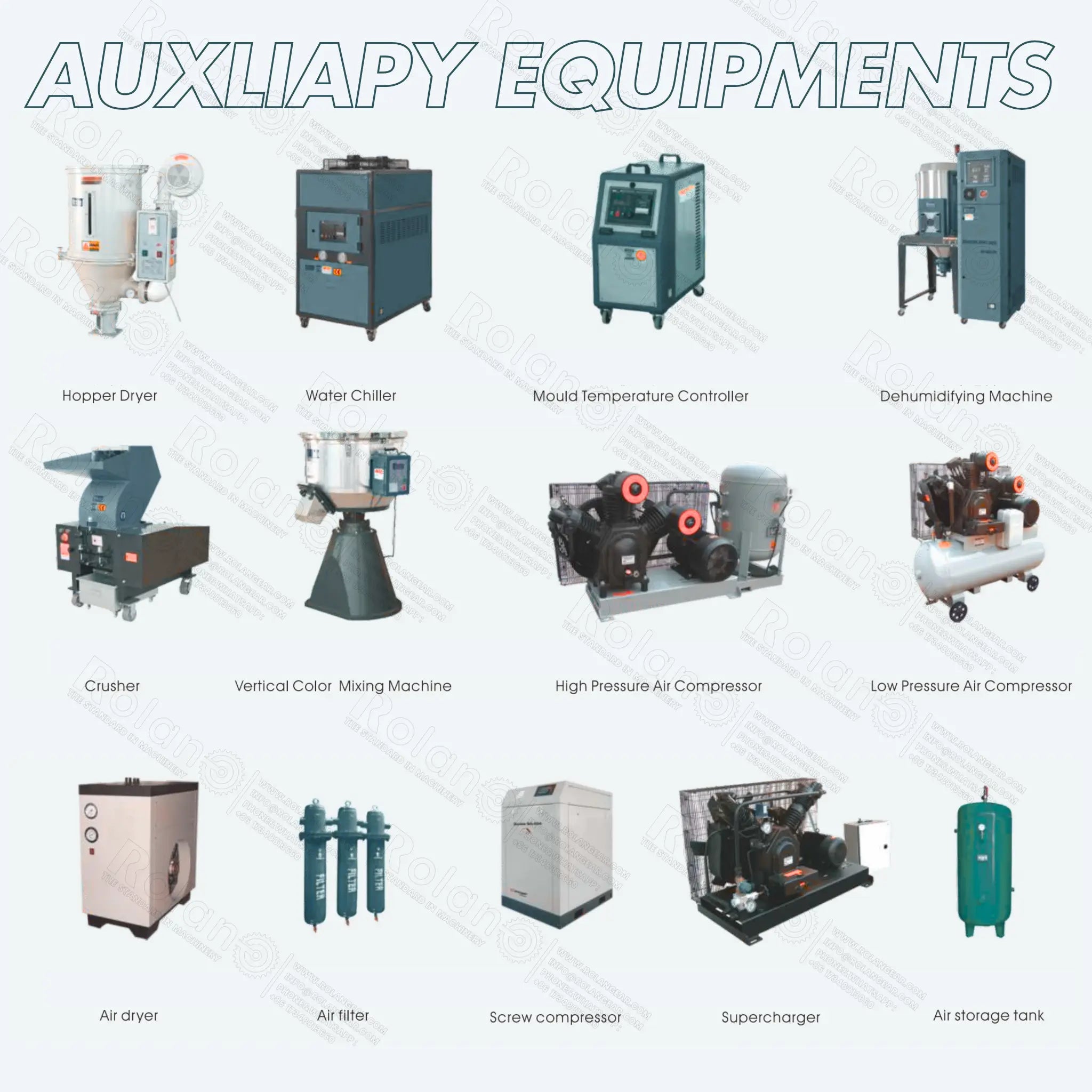

Automatic Blow Molding Machine Auxiliary Equipment
Complete your production line with these essential support systems
Hopper Dryer
Pre-dries plastic materials to remove moisture before processing, ensuring optimal material quality and preventing defects in finished products.
Water Chiller
Maintains precise temperature control for cooling molds and machinery, critical for consistent product quality and cycle time optimization.
Mould Temperature Controller
Regulates mold temperature with high precision to ensure uniform wall thickness and superior surface finish on blown containers.
Dehumidifying Machine
Controls humidity in production areas to prevent moisture absorption by hygroscopic materials like PET during processing.
Crusher
Recycles production scrap and rejects by grinding them into reusable granules for cost-effective material recovery.
Vertical Color Mixing Machine
Ensures homogeneous blending of masterbatch colors with virgin material for consistent product coloration.
High Pressure Air Compressor
Generates the high-pressure air (25-40 bar) required for the blow molding process to form container shapes.
Low Pressure Air Compressor
Provides low-pressure air (8-10 bar) for machine operations like part ejection and conveyor systems.
Air Dryer
Removes moisture from compressed air to prevent water spots and defects in blown containers.
Air Filter
Purifies compressed air by removing oil, dust and particulates that could contaminate products.
Screw Compressor
Provides continuous, energy-efficient compressed air supply for high-volume production environments.
Supercharger
Boosts air pressure when additional blowing force is required for large or complex container designs.
Air Storage Tank
Stabilizes air pressure and provides reserve capacity to handle peak demand during production cycles.
PET Blowing Molds for All Container Types
High-precision molds tailored for your specific container requirements
Water Bottle Molds
- Standard 500ml-5L sizes
- Sports cap compatible designs
- Lightweight & durable constructions
Juice Bottle Molds
- Wide-mouth designs
- Handle options available
- Enhanced structural integrity
Carbonated Drink Molds
- Pressure-resistant designs
- PCO28/PCO38 neck finishes
- Optimized for bottle strength
Edible Oil Molds
- 500ml-5L capacities
- Drip-free pouring spouts
- Reinforced base designs
Custom Specialty Molds
- Unique shapes & designs
- Brand-specific contours
- Ergonomic grip patterns
Pharmaceutical Molds
- 100ml-1L medical bottles
- Child-resistant caps
- Tamper-evident features
Our Mold Advantages
Fast cooling channels for reduced cycle times
Quick-change systems for multi-product lines
Precision-cut cavities for consistent wall thickness
Durable stainless steel/aluminum construction
Why Choose RolanGear?
- Proven Reliability: 98% uptime in continuous operation
- Energy Efficient: 40% lower power consumption than industry average
- Precision Engineering: ±0.5mm bottle consistency
- Comprehensive Support: 2-year warranty with remote diagnostics
- Global Service: Technical support available in 12 languages
Choose options
Ready To Automate YourAutomatic Blow Molding Machine 2 Cavity 1/2L?
Contact Rolangear Machinery today for a quote, customization options, or a free consultation.
