Rolan Gear will guide you to produce good pipes with higher quality and lower cost
Product Overview

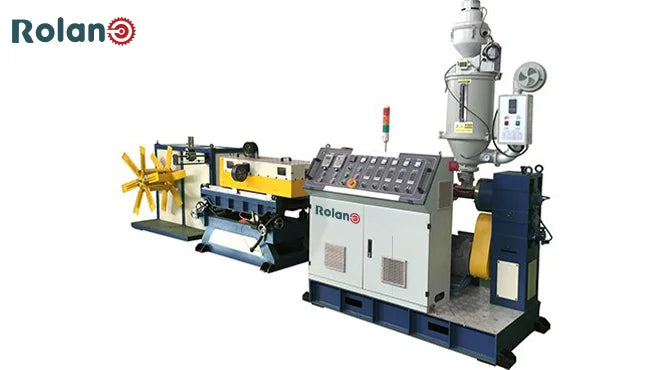

HDPE Single Pipe production line
High Speed PE PP Single
This PE PP single wall corrugated pipe making machine adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.
HDPE Single Pipe production line

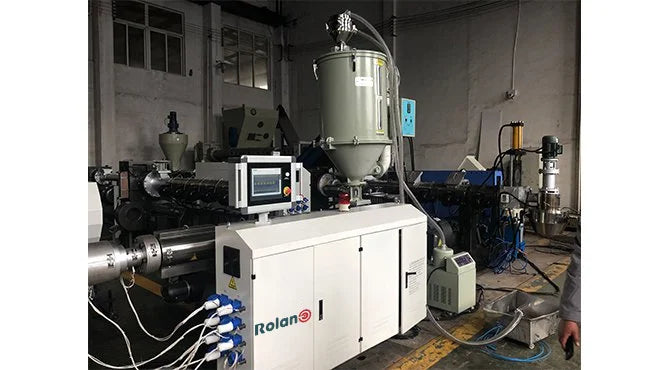

Single screw extruder
Material of screw& Barre:38CrMoAlA With Nittriding Treatment. Electrical cabinet:Frequency converter: ABBTemperature controller: OmronLow voltage apparatus: Schneider
HDPE Single Pipe production line

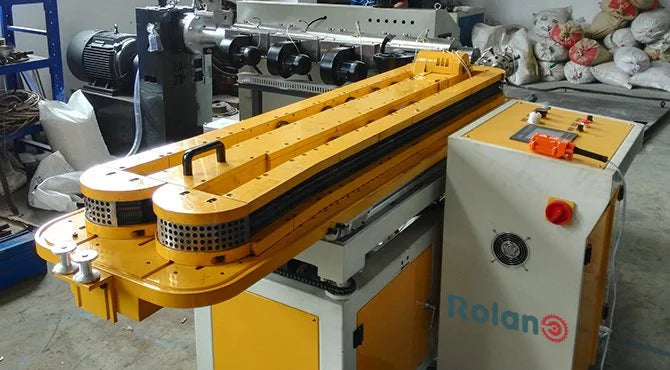

Forming machine
PLC control system. Air cooling and water cooling.Frequency governor: ABB converterContactor: Schneide
HDPE Single Pipe production line

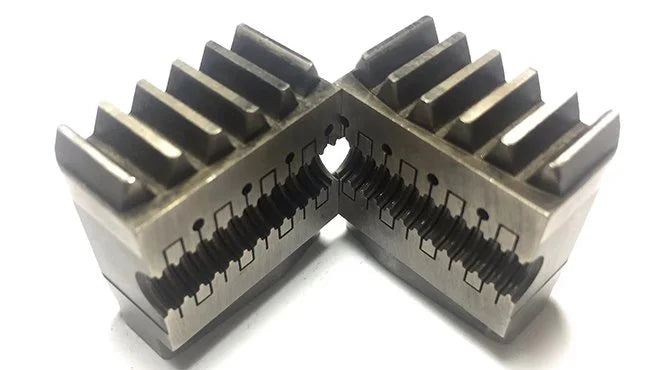

Pipe mould block
Material: 40Cr quenching Nitriding.Head heating: stainless steel heating ring.
HDPE Single Pipe production line

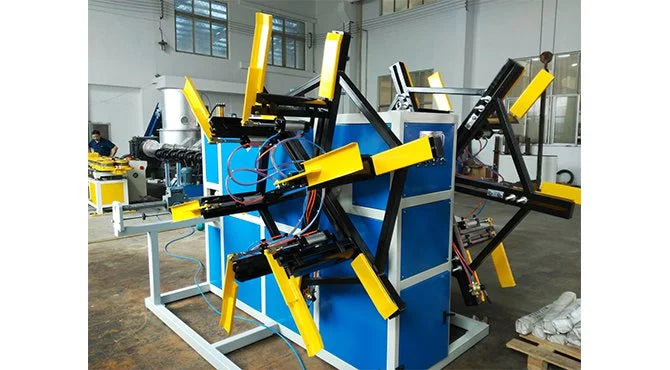

Winder
Winding form: double take-up
Key Features & Specifications
Key Features of Our HDPE Single Pipe production line
Plastic single wall corrugated pipes have features of high temperature resistance, corrosion and abrasion resiatance,high intensity and good flexibility,etc.they are widely used in fields of auto wire harness, electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lantern wires,tubes of air conditioner and washing machine,etc.
| Extruder | RG45/33 | RG55 | RG65/30 |
|---|---|---|---|
| Main Motor Power | 11–18.5KW | 22–30KW | 30–55KW |
| Molding | 45–72 pairs | 50–72 pairs | 50–72 pairs |
| Pipe Diameter | 10–35mm | 16–50mm | 50–80mm |
| Speed | 0–10m/min | 0–25m/min | 0–20m/min |
| Cooling | Air cooling and water cooling | Air cooling and water cooling | Air cooling and water cooling |

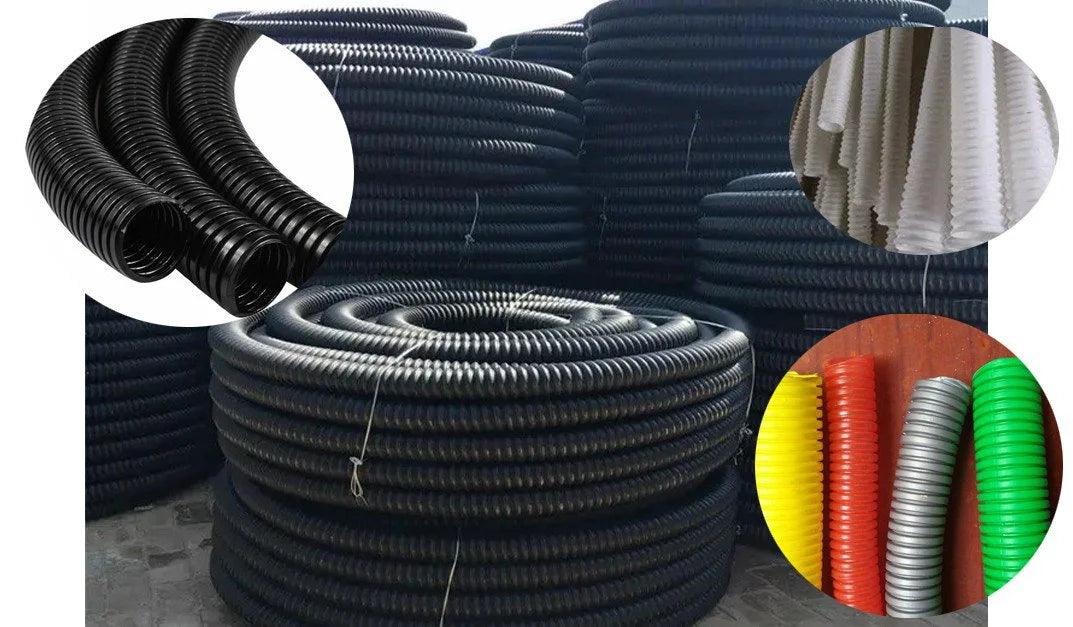

Final Product Introduction:
1. Plastic single-wall corrugated pipe making machine adopts gears to run moulds and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.
2. This PE PP corrugated pipe making machine equipped with specially designed water cooling sealing system,and the lubrication oil can be injected automatically.
3. In the forming machine, for small sizes mould,it can be set with two mould chambers which can make two different sizes of pipes only by adjsuting the height of forming machine automatically.
4. Applications:PP/PE/PVC/EVA/PA high speed single wall corrugated pipe making machine can produce electrical thread-passing pipes,circuit of machine tool,protective pipe of lamps,water pipes in conditioner,washing machine, bathroom, etc.
