PVC pipe production line

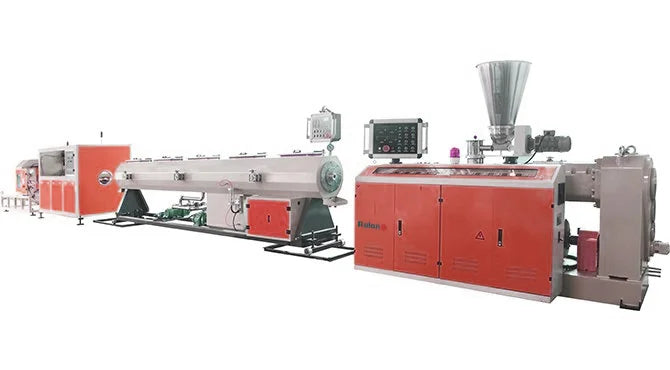

PVC Water Pipe Extrusion Machine
This PVC water pipe extrusion machine is mainly used to produce PVC drainage pipes and U-PVC,C-PVC water supply pipes in agriculture or construction field, and electrical cable protection pipes. This plastic pipe extrusion line consists of twin screw extruder, pipe die head and mould, calibration and spray cooling tank, haul-off, cutting machine and stacker.
PVC pipe production line

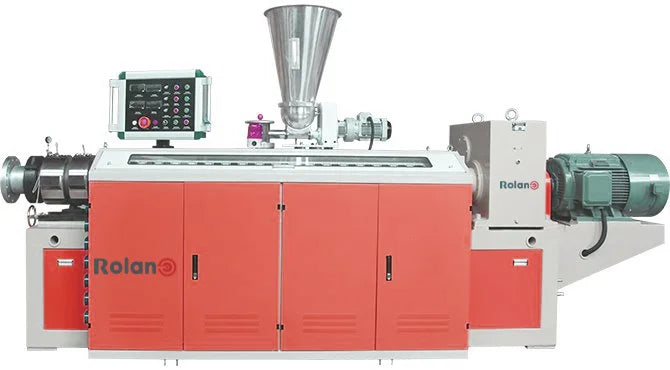

Rolan Conical twin screw extruder
Mould:
Surface treatment: Hard chromium plating and polishing
Stock mold:
Height adjust type: all of the four groups use hydraulic adjustment
Cooling type: cooling water(it will be better to use water chiller)
Cooling calibration tank:
Carrier roller material: Stainless steel
Main motor: 55KW AC SIEMENSCapacity: 250-400KG/HControl mode: SIEMENS PLCInverters: ABBVoltage: 380V 50HZ
PVC pipe production line

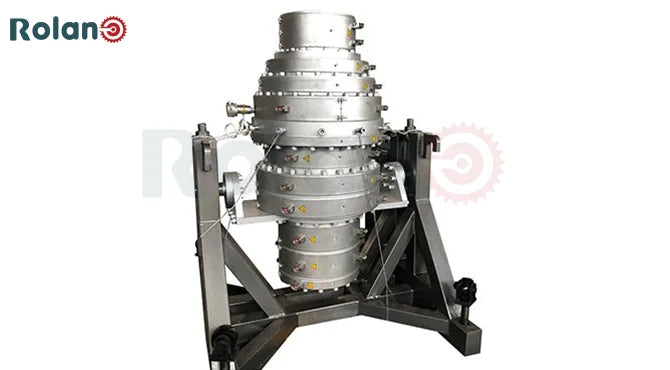

PVC drain pipe mould
Model: Blue style modelSpecification: 75mm,80mm,90mm,100mm,110mm,125mm,140mm,160mm,200m
PVC pipe production line

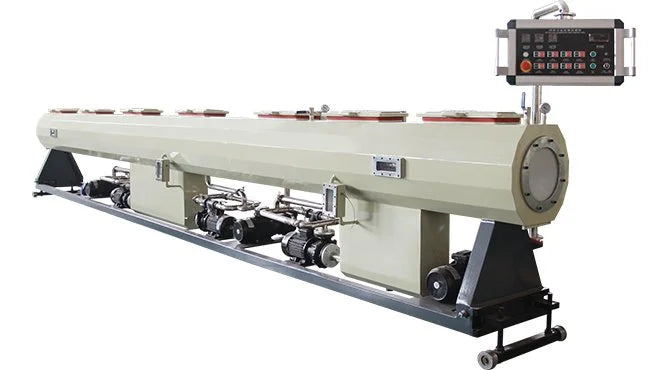

Vacuum calibration and cooling tank
Pipe application scope: 63-250MMMaterial: SUS304Vacuum pump model: Water circleElectrical Installation: SIEMENS or SCHNEIDER with sealing IP65
PVC pipe production line

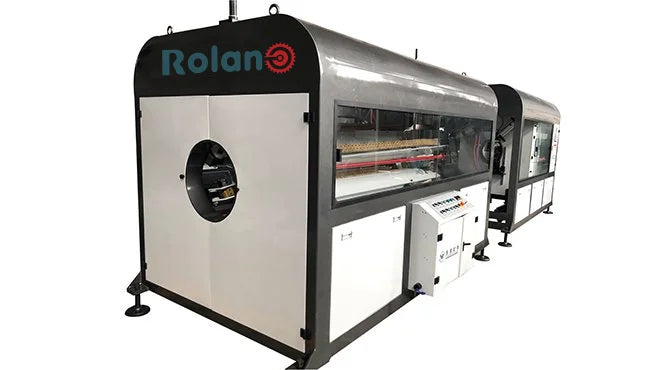

Haul off machine and cutter
Haul off machine :
Rubber piece type: V Rubber blockModel control: SIEMENS PLCCutter:Cutting pattern: ring form cuttingClamp form when cutting: Pneumatic
Key Features & Specifications
Key Features of Our PVC pipe production line
The PVC pipes produced by the PVC water pipe extrusion machine are widely used in municipal water supply and drainage, industrial water supply and drainage, civil water supply and drainage, irrigation, vegetation watering, etc. According to the diameter and function of PVC pipe, in the field of construction, PVC pipe is used for PVC conduit, PVC water supply pipe, PVC drain pipe, etc.
| Diameter (mm) | Conical Extruder | Extruder Power | Max. Lineal Speed | Max. Capacity |
|---|---|---|---|---|
| 50–160 | RGSZ65/132 | 37KW AC | 8 m/min | 250 kg/h |
| 63–200 | RGSZ65/132 | 37KW AC | 3.5 m/min | 250 kg/h |
| 75–250 | RGSZ80/156 | 55KW AC | 3 m/min | 400 kg/h |
| 160–315 | RGSZ80/156 | 55KW AC | 3 m/min | 350 kg/h |
| 315–630 | RGSZ92/188 | 110KW DC | 1.2 m/min | 800 kg/h |
Final Product Introduction:
1. The raw material is automatically fed by the screw feeder.
2. Extruder is specially used for PVC nitriding and chrome plated screw, longer service life.
3. The vacuum calibration tank is 304 stainless steel, equipped with vacuum pump and water pump.
4. The haul off machine adopts rubber crawler with large traction force. Transmission parts adopt gear transmission, more stable operation. The speed is controlled by frequency conversion..
5. Depending on the diameter of the pipe, the cutting machine can be used to lift the knife or ring cutting. The system is controlled by PLC.
6. The stacker use proximity switch to control the length of pipe, and the cylinder controls the blanking after cutting.
7. According to different pipe diameters, we can recommend the best water pipe extrusion machine plan.
