RG-W Series Automatic Bottle Blowing Machine
Designed for high-volume production with minimal energy usage, the RolanGear RG-W210 and RG-W170 models bring industry-leading automation, efficient air systems, and smart heating technology to your bottle manufacturing line.
Key Features
- Advanced HMI system controls full workflow — auto loading, blowing, and dropping — with magnetic induction sensors and PLC diagnosis.
- High-speed operation, precise positioning, and smooth action via servo logic.
- Dual-crank clamping with adjustable stroke saves time based on bottle size.
- Rotating far-infrared heaters ensure uniform preform heating with individual temp control.
- Pre-heater proximity reduces tunnel length and saves energy.
- Multi-stage air system for slight, high, and low-pressure control.
- Built-in lubrication extends machine life.
- Fully automatic, eco-friendly, low-maintenance operation with high safety.
Technical Specifications
| Category | Item | RG-W210 | RG-W170 |
|---|---|---|---|
| PRODUCT | Theoretical Output (pcs/h) | 1200 | 1800 |
| Max Neck Size (mm) | 48 | 48 | |
| Max Volume (L) | 10.0 | 6.0 | |
| Max Height (mm) | 430 | 350 | |
| Max Diameter (mm) | 220 | 190 | |
| MOULD | Number of Cavities | 2 | 3 |
| ELECTRICAL | Power Supply | 220–380V / 50–60Hz | |
| Heating Power (kW) | 64 | 64 | |
| Total Power (kW) | 66 | 66 | |
| MACHINE | Main Dimension (L×W×H) | 3.7×1.9×2.2 m | 4.5×1.9×2.2 m |
| Main Body Weight (kg) | 3500 | 4100 | |
Benefits & Industry Applications
Automatic Bottle Blowing Machine for PET Containers – the RG-W series by RolanGear delivers next-level automation and energy efficiency for producing water bottles, juice packaging, oil containers, and more. With smart clamping, fast mold changes, and precision control, it’s the ideal solution for high-speed PET production lines.
Automatic Blow Molding Machine Auxiliary Equipment
Complete your production line with these essential support systems
Hopper Dryer
Pre-dries plastic materials to remove moisture before processing, ensuring optimal material quality and preventing defects in finished products.
Water Chiller
Maintains precise temperature control for cooling molds and machinery, critical for consistent product quality and cycle time optimization.
Mould Temperature Controller
Regulates mold temperature with high precision to ensure uniform wall thickness and superior surface finish on blown containers.
Dehumidifying Machine
Controls humidity in production areas to prevent moisture absorption by hygroscopic materials like PET during processing.
Crusher
Recycles production scrap and rejects by grinding them into reusable granules for cost-effective material recovery.
Vertical Color Mixing Machine
Ensures homogeneous blending of masterbatch colors with virgin material for consistent product coloration.
High Pressure Air Compressor
Generates the high-pressure air (25-40 bar) required for the blow molding process to form container shapes.
Low Pressure Air Compressor
Provides low-pressure air (8-10 bar) for machine operations like part ejection and conveyor systems.
Air Dryer
Removes moisture from compressed air to prevent water spots and defects in blown containers.
Air Filter
Purifies compressed air by removing oil, dust and particulates that could contaminate products.
Screw Compressor
Provides continuous, energy-efficient compressed air supply for high-volume production environments.
Supercharger
Boosts air pressure when additional blowing force is required for large or complex container designs.
Air Storage Tank
Stabilizes air pressure and provides reserve capacity to handle peak demand during production cycles.

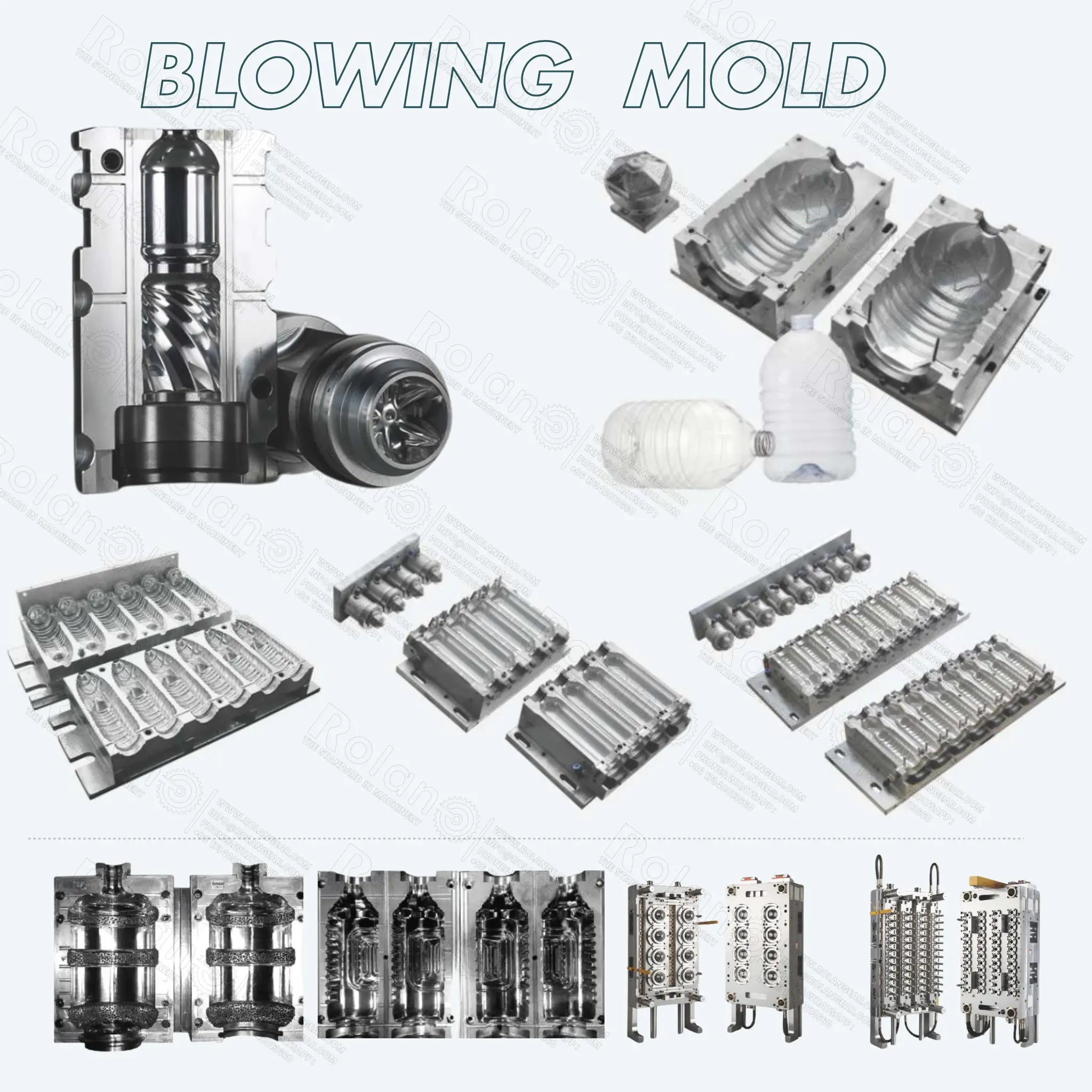

PET Blowing Molds for All Container Types
High-precision molds tailored for your specific container requirements
Water Bottle Molds
- Standard 500ml-2L sizes
- Sports cap compatible designs
- Lightweight & durable constructions
Juice Bottle Molds
- Wide-mouth designs
- Handle options available
- Enhanced structural integrity
Carbonated Drink Molds
- Pressure-resistant designs
- PCO28/PCO38 neck finishes
- Optimized for bottle strength
Edible Oil Molds
- 500ml-5L capacities
- Drip-free pouring spouts
- Reinforced base designs
Custom Specialty Molds
- Unique shapes & designs
- Brand-specific contours
- Ergonomic grip patterns
Pharmaceutical Molds
- 100ml-1L medical bottles
- Child-resistant caps
- Tamper-evident features
Our Mold Advantages
Fast cooling channels for reduced cycle times
Quick-change systems for multi-product lines
Precision-cut cavities for consistent wall thickness
Durable stainless steel/aluminum construction
Boost your bottle production with machines designed to save cost, reduce energy, and operate reliably for years. Trusted by manufacturers worldwide.
