From Date Fruit to Finished Syrup
The process converts dates into a standardized liquid product by removing unwanted material, extracting useful soluble components, separating solids, controlling concentration, and preparing syrup for packaging.
Dates Syrup Processing Production Line
El precio indicado es solo un depósito . El precio final puede variar según sus requisitos y opciones. Contáctenos para obtener una cotización personalizada. 40 mini
Tenga en cuenta que el precio indicado es solo un depósito. El precio final de la máquina puede variar según sus requisitos específicos, configuraciones y características opcionales. Una vez que recibamos sus necesidades detalladas, le proporcionaremos un presupuesto completo. No dude en contactarnos para obtener una oferta personalizada.
Contáctanos para los catálogos de productos no subidos
Compra directa: (7-10 días)
Personalizar: (8-12 días)
Dates Syrup Processing Line
Rolangear provides a complete date syrup processing line for turning suitable dates into consistent syrup through washing, sorting, pitting, extraction, separation, filtration, vacuum concentration, storage, and filling. The system can be engineered around your date variety, target syrup specification, packaging format, factory conditions, and automation requirements.
🍯 Date Syrup Production🏭 Complete Processing Plant🥄 Retail + Foodservice + Industrial Syrup🔧 Custom Layout Support
Quick Overview
A food-processing solution for buyers searching for a date syrup production line, date syrup making machine, dates processing line, or date syrup processing plant.
ProductDates Syrup Processing Line
Raw MaterialSuitable fresh or dried dates
Main ProductDate syrup for retail, foodservice, industrial ingredients, or bulk supply
ConfigurationCustomized by capacity, concentration, packaging, factory layout, utilities, and automation
Complete Date Syrup Production Plant Solution
Designed to connect fruit preparation, extraction, separation, concentration, storage, and filling into one practical commercial production flow.
Built Around Your Market
A retail syrup brand, foodservice supplier, and industrial ingredient producer may require different filling formats, viscosity targets, concentration levels, storage capacity, and automation. Rolangear configures the line around the business model.
Why Build a Date Syrup Production Line?
Processing dates into syrup creates a higher-value product format and helps producers reach multiple food markets.
Value-Added Date Products
Move beyond raw date sales by producing syrup for retail packaging, foodservice containers, and industrial ingredient supply.
Controlled Processing
Washing, sorting, extraction, filtration, concentration, and filling are connected to improve process consistency and reduce bottlenecks.
Scalable Food Business
The system can be planned for future growth with larger storage, higher filling speeds, additional tanks, or expanded automation.
Finished product
Raw material
Process concept
Factory view
Preparation stage
Application image
How Dates Become Syrup: Step-by-Step Process
Typical process: date receiving → washing → sorting → pitting and preparation → extraction → separation and filtration → vacuum concentration → storage → filling and packaging.
Date Receiving
Raw dates are received, inspected, and prepared for washing. Supply consistency affects capacity planning and finished-product stability.
Washing
Receiving washing and brush washing remove surface dirt and prepare dates for sorting and downstream processing.
Sorting
Operators or sorting systems remove unsuitable dates to protect extraction quality and reduce unwanted material entering the line.
Pre-Cooking
Steam pre-cooking softens the fruit and prepares the material for pulping, extraction, and stable syrup processing.
Pitting / Pulping
The pulping and kernel-separation stage turns dates into paste while removing pits or coarse solids according to the selected configuration.
Juice Extraction
Extraction tanks use controlled temperature, agitation, filtration, and residence time to recover useful liquid components from the date material.
Separation & Filtration
Decanter separation and filtration help remove solids, improve product cleanliness, and protect downstream concentration equipment.
Vacuum Concentration
The concentration system removes water under controlled conditions to reach the desired soluble-solids level, viscosity, and syrup specification.
Storage & Balance
Balance tanks and product storage create buffer capacity between processing, concentration, and filling sections.
Filling & Packaging
Date syrup can be filled into bottles, jars, pouches, foodservice containers, drums, or bulk packaging according to the target market.
Water Treatment
RO water treatment supports processing water quality for the food production line.
CIP Cleaning
CIP cleaning can reduce manual cleaning and support systematic cleaning of tanks, pipelines, and product-contact components.

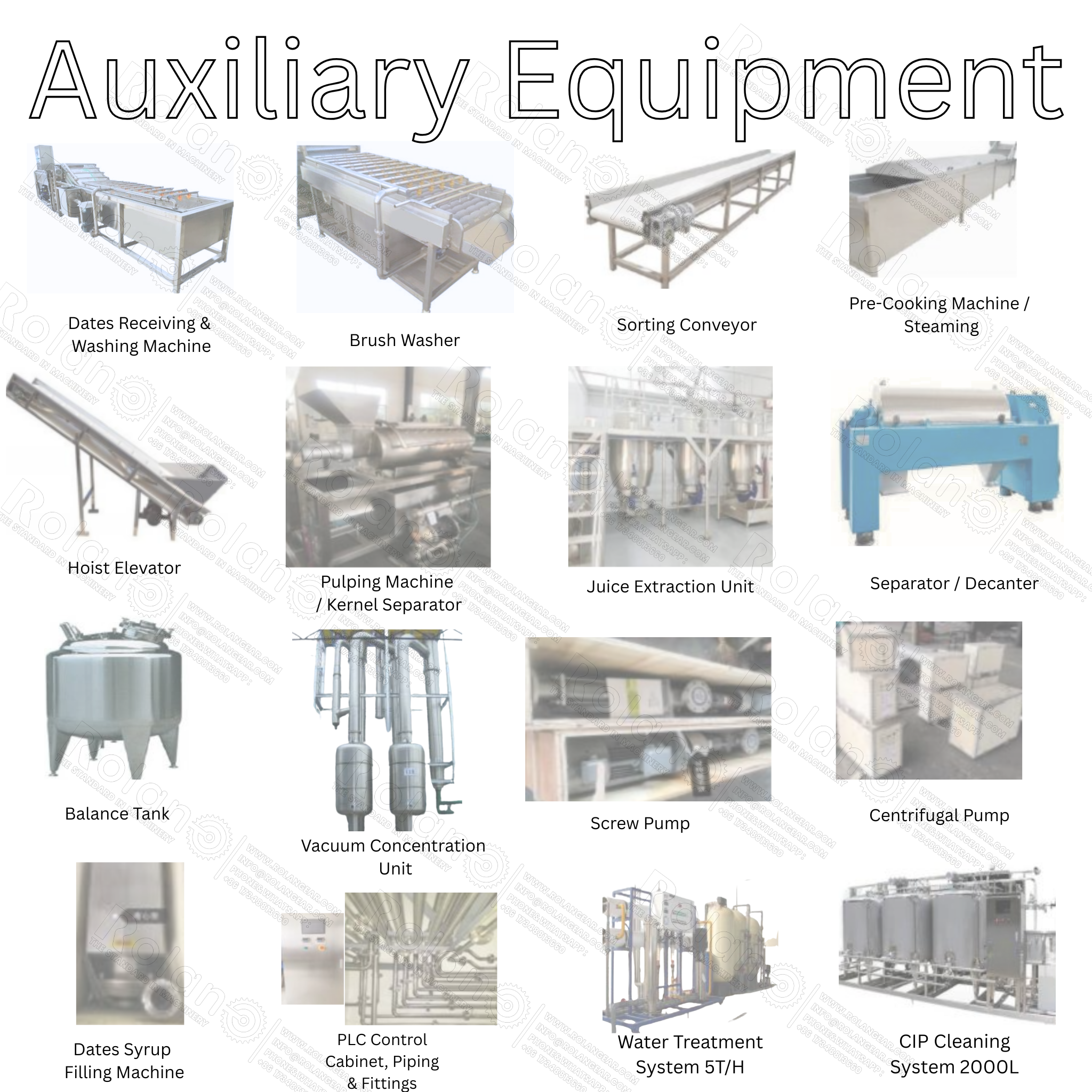

Technical Specification Reference
Reference specifications from the supplied Dates Syrup Processing Line document. Final details should be confirmed according to the selected capacity and project layout.
| No. | Equipment | Main Specification / Function |
|---|---|---|
| 1 | Dates Receiving & Washing Machine | Model TW3C-4; capacity 2 ton/hour; water required 2 tons/hour; power 2.5 kW; dimension 4000 × 1100 × 1050 mm; SUS304 structure |
| 2 | Brush Washer | Model MSJ-3; capacity 2 t/h; motor power 2 kW; SUS304; dimension 2500 × 1150 × 1100 mm |
| 3 | Sorting Conveyor | SUS304 food-grade plastic belt; capacity 1000 kg/h; power 0.75 kW; dimension 4000 × 600 × 900 mm |
| 4 | Pre-Cooking Machine / Steaming | Model YZ-7; capacity 2000 kg/h; power 1.5 kW; dimension 7000 × 1500 × 1200 mm; stainless steel mesh chain |
| 5 | Hoist Elevator | SUS304; capacity 2000 kg/h; power 0.75 kW; belt width 300 mm; hoist angle 35°; weight 90 kg |
| 6 | Pulping Machine / Kernel Separator | Capacity 2000 kg/h; power 4.5 kW; mesh size Ø5 mm; SUS304 contact parts; dimension 1750 × 900 × 1280 mm; weight 400 kg |
| 7 | Juice Extraction Unit | Extraction tank 4000 L × 2; motor 2.75 kW × 2; filtration 120 mesh; extraction water temperature 60–70°C; material SUS304 2B |
| 8 | Separator / Decanter | LW400-1800-N; drum diameter 400 mm; drum length 1800 mm; max speed 3800 r/min; separation factor 3225 g; total weight 2300 kg |
| 9 | Balance Tank | Vertical tank; capacity 3000 L; stainless steel 304; inner thickness 3 mm; outer thickness 1.5 mm; PT100 sensor and stirring motor |
| 10 | Vacuum Concentration Unit | Evaporation capacity 3000 L; double-effect vacuum falling film; condenser 75 m²; Siemens PLC control; concentration temperature 55–85°C |
| 11 | Screw Pump | Thick slurry screw pump; 304 stainless steel contact parts; power 4.5 kW; pressure 8 kg; flow rate 4–12 t/h |
| 12 | Centrifugal Pump | Liquid below 80°C; stainless steel; flow 3 t/h; distance 15 m; power 0.75 kW; 2840 rpm |
| 13 | Dates Syrup Filling Machine | Packaging/filling section configured according to the requested packaging format |
| 14 | PLC Control Cabinet, Piping & Fittings | Touch screen, PLC control, remote displays, valve control, motor control, CIP remote control, Schneider inverter, pipes, valves, fittings, and supports |
| 15 | Water Treatment System 5T/H | RO water treatment; capacity 5T/H; recovery rate 96–98%; outlet conductivity ≤10 μs/m; active carbon and microporous membrane filters |
| 16 | CIP Cleaning System 2000L | CIP cleaning for tanks and pipelines; 2 cleaning procedures; each cleaning period 120 minutes; water/alkali/acid cleaning sequence |
Products and Markets You Can Serve
The same core date syrup production machine line can support different commercial strategies depending on packaging and syrup specifications.
Retail Date Syrup
Bottles, jars, squeeze containers, and other consumer packaging for natural sweetener, topping, breakfast, and food ingredient markets.
Foodservice Date Syrup
Larger containers for restaurants, bakeries, hotels, catering companies, distributors, and professional kitchens.
Industrial Ingredient Syrup
Bulk date syrup supplied to bakery, confectionery, dessert, beverage, sauce, snack, and food formulation manufacturers.
Why Choose Rolangear for Date Syrup Equipment?
Rolangear focuses on complete processing-line engineering, not only individual machine supply.
Complete Line Planning
Preparation, extraction, separation, filtration, concentration, storage, filling, utilities, and CIP are considered as one connected system.
Project-Specific Configuration
The line can be designed around date variety, raw-material condition, target capacity, syrup specification, packaging format, factory dimensions, and utilities.
Food-Grade Process Focus
Rolangear helps buyers consider hygienic contact materials, drainability, cleaning access, product-contact piping, tank design, process zoning, and finished-product handling.
Popular Date Syrup Buyer
Date syrup processing line, how is date syrup made
Date processing line manufacturers
Frequently Asked Questions
Common questions from buyers planning a date syrup processing line or dates syrup manufacturing plant.
What is a date syrup processing line?
A date syrup processing line is an integrated food-processing system that converts suitable dates into concentrated syrup through preparation, extraction, separation, filtration, concentration, storage, and packaging.
What is the basic date syrup production process?
The general process is washing, sorting, pitting, preparation, extraction, separation, filtration, concentration, storage, and filling. The actual process may be adjusted according to the raw material and desired product.
Can lower-grade dates be used for syrup?
Suitable dates that do not meet premium whole-fruit appearance requirements may be considered, provided they meet required food-safety and quality standards.
Can I control syrup concentration and viscosity?
Yes. The concentration stage can be designed around the required soluble-solids level, viscosity, and finished-product specification.
Can the line include filling and packaging?
Yes. Filling and packaging can be incorporated according to container type, filling volume, production speed, packaging format, and automation level.
How much does a date syrup production line cost?
The investment depends on capacity, process configuration, automation, concentration technology, storage, filling system, utilities, and factory requirements. A project-specific quotation is recommended.
What information is needed for a quotation?
Please provide date variety, raw-material quantity and condition, target capacity, desired syrup specification, packaging format, factory dimensions, available utilities, location, and automation requirements.
Ready to Turn Dates Into a Commercial Syrup Product?
A successful date syrup plant starts with the right process, not simply a list of machines. Tell Rolangear your raw material, target product, capacity, concentration, packaging, factory, utilities, and market requirements so we can recommend a complete date syrup processing solution.
