Rolangear provides a complete PET bottle washing recycling line for converting post-consumer PET bottles into clean recycled PET flakes through feeding, sorting, crushing, washing, separation, rinsing, dewatering, drying, and collection. This PET bottle recycling machine line is designed for recycling factories, plastic recovery businesses, and investors building a practical PET flakes production project.
A practical recycling solution for producing clean PET flakes from waste plastic bottles with flexible configuration options.
Designed for buyers searching for a PET bottle washing recycling line, PET bottle recycling machine, PET washing line, PET flakes washing line, plastic bottle recycling machine, or PET bottle washing line price.
The line moves collected PET bottles through a continuous process including feeding, sorting, crushing, washing, separation, rinsing, dewatering, hot-air drying, and final flake collection. Each stage supports cleaner material flow and more stable recycled PET flake quality.
Rolangear helps customers plan equipment selection, capacity matching, factory layout, water and wastewater requirements, electrical demand, installation support, spare parts, and optional downstream PET granulation based on the project requirement.
A professional PET washing line helps improve cleaning performance, reduce unnecessary manual handling, and support long-term recycling business growth.
Washing, hot washing, rinsing, and separation stages help remove dirt, labels, glue, liquid residue, caps, and mixed contamination from post-consumer PET bottles.
Crusher, screw loaders, washing tanks, dewatering, drying, and collection equipment are arranged as one coordinated system for smoother production flow.
The 300 kg/h PET washing line is a practical starting configuration, while larger capacity and optional pelletizing can be planned as the business expands.

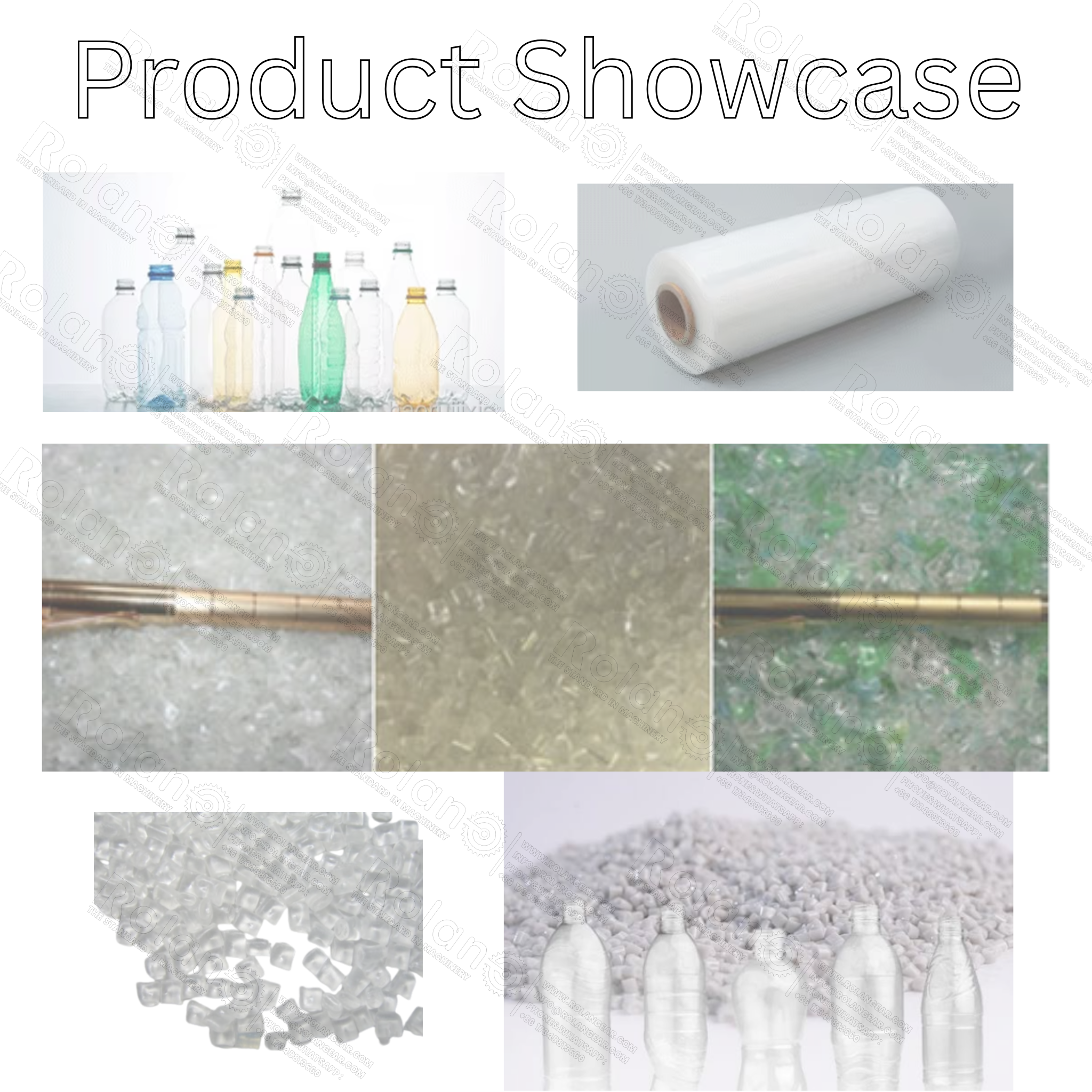

These cards explain the project visually: raw bottles, clean flakes, production-line overview, factory scene, and optional downstream granules.
Post-consumer PET bottles are the starting raw material for the recycling project. Bottle quality, color mix, labels, caps, dirt level, and contamination directly affect the washing configuration and final PET flake quality.
Raw material introduction
The main finished product of the washing line is clean PET flakes. Buyers usually evaluate flake size, cleanliness, moisture level, color consistency, remaining labels, cap contamination, and foreign materials.
Finished product output
The process turns low-value collected plastic bottles into reusable recycled PET material. This visual helps customers understand the value created by sorting, crushing, washing, dewatering, and drying.
Recycling result

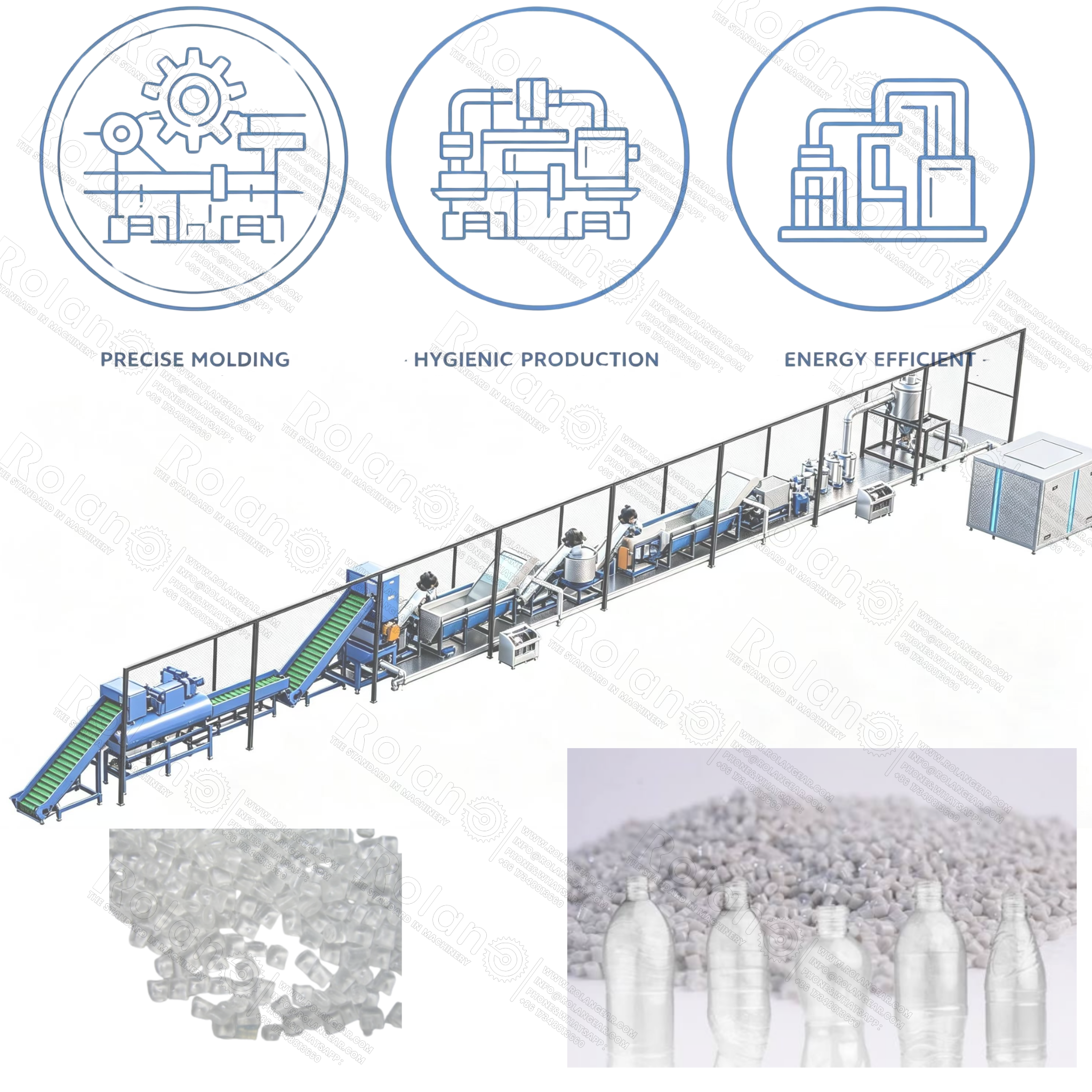

The PET bottle washing recycling line works as a continuous material-flow system. Feeding, crushing, washing, separation, dewatering, drying, and collection sections should be planned together as one factory solution.
Full line concept
A complete recycling project requires more than one machine. Factory layout, raw-material storage, water supply, drainage, electrical power, maintenance access, and finished-product handling all affect the final line design.
Project installation view

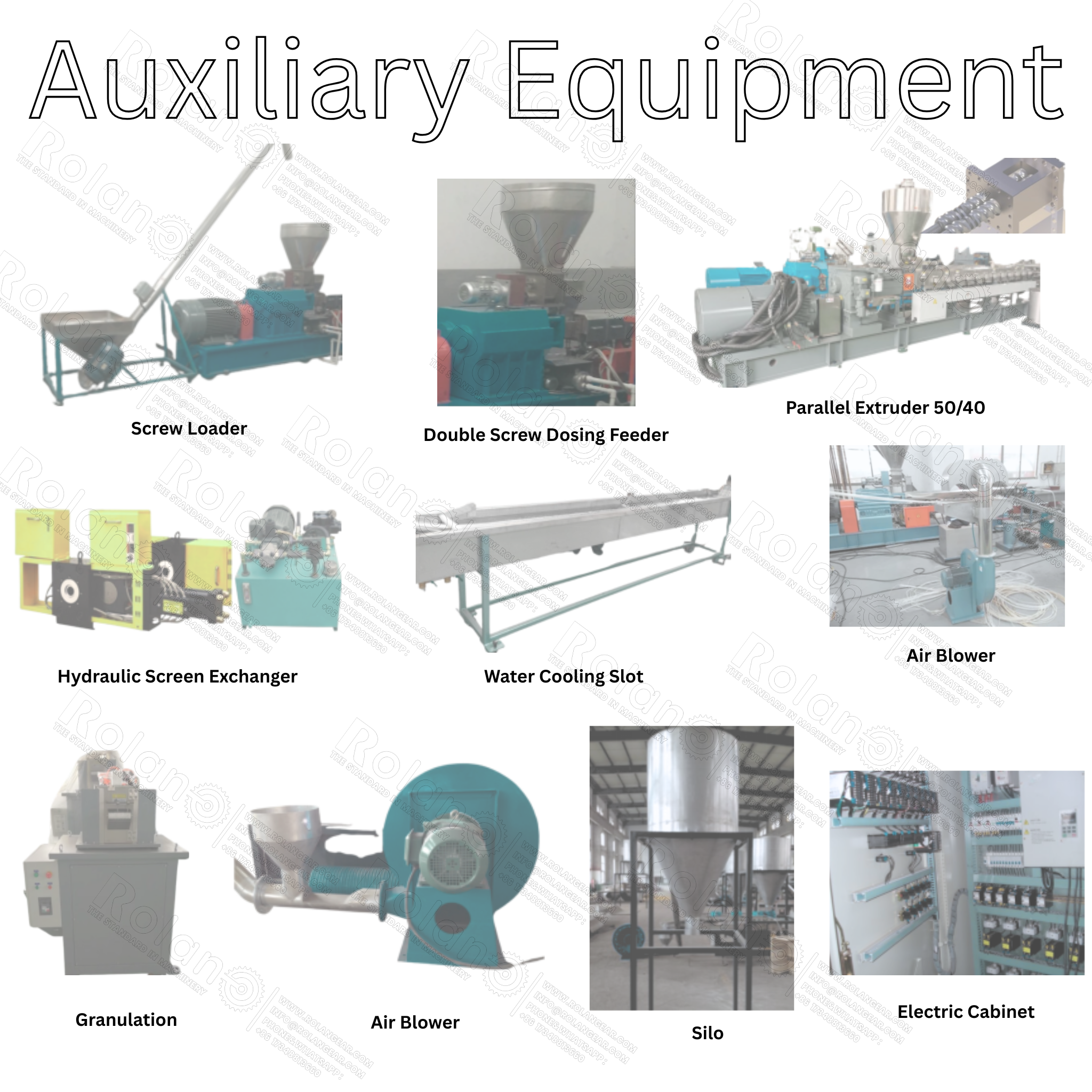

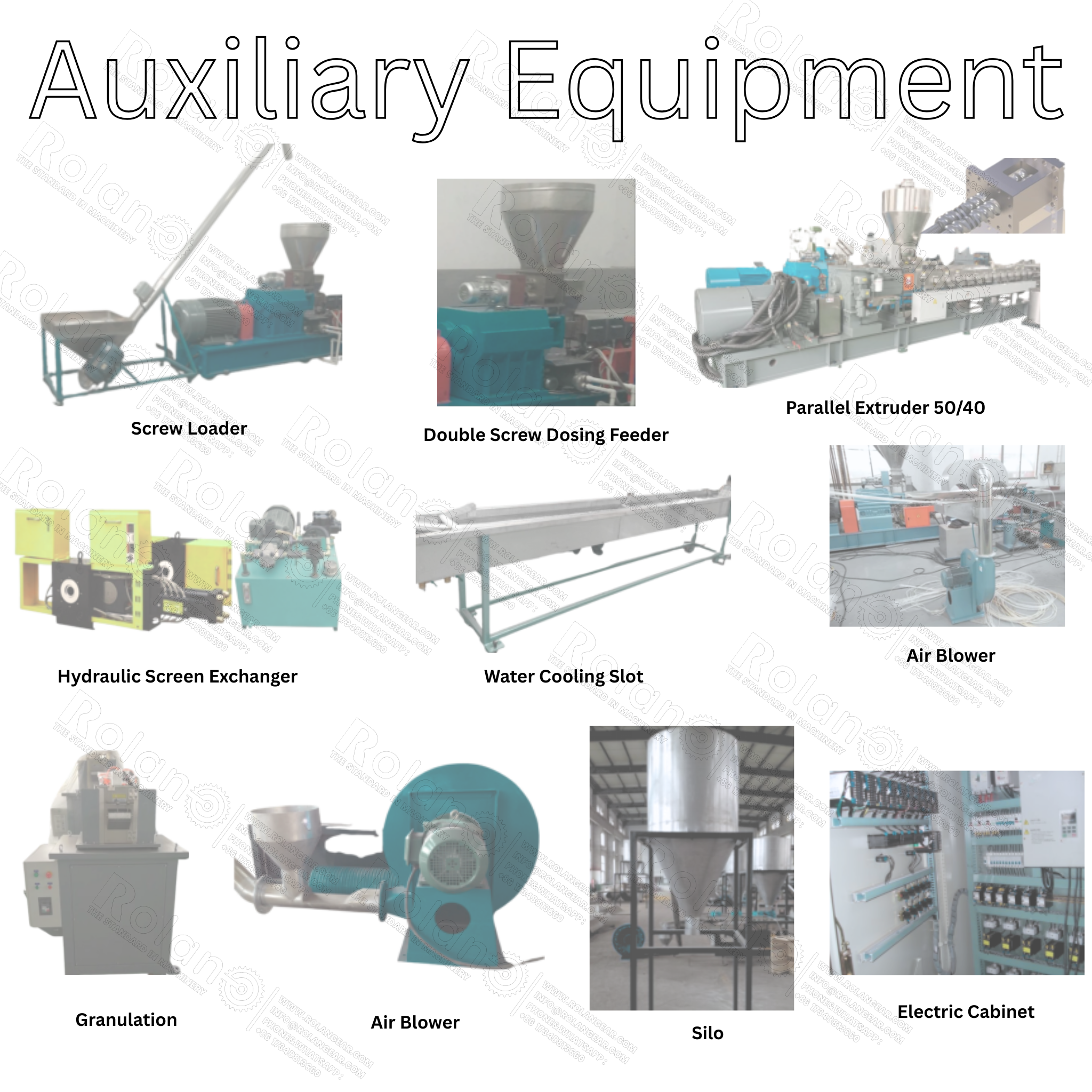

If customers need higher-value recycled pellets, washed PET flakes can be transferred to a separate PET granulation line. The washing line produces clean flakes; granulation is an additional downstream processing stage.
Optional downstream productThe PET bottle recycling process is arranged as a continuous flow from collected bottles to clean dried flakes.
Collected PET bottles enter the line through the feeding section to support stable material supply.
Operators remove non-PET plastics, metals, unsuitable containers, and heavy contamination before crushing.
Sorted bottles are reduced into PET flakes or pieces for easier washing, separation, and drying.
The system reduces labels, caps, rings, glue, and other unwanted materials from the PET stream.
Washing removes dirt, residues, and contamination according to the condition of the incoming bottles.
Hot water and detergent can be used to loosen glue, label residue, oil, and difficult contamination.
Rinsing removes remaining washing residue and improves final flake cleanliness.
Mechanical dewatering removes surface water before the hot-air drying stage.
Hot-air pipe drying reduces moisture for better storage, packing, transport, and downstream processing.
Clean PET flakes are collected in a storage bunker or silo as the main finished product.
Qualified washed flakes can be processed in a separate PET granulation machine line to make recycled pellets.
Final flake quality is evaluated by cleanliness, moisture level, color separation, flake size, and remaining contamination.
Reference data from the 300 kg/h PET washing line specification. Final values should be confirmed according to the selected configuration.

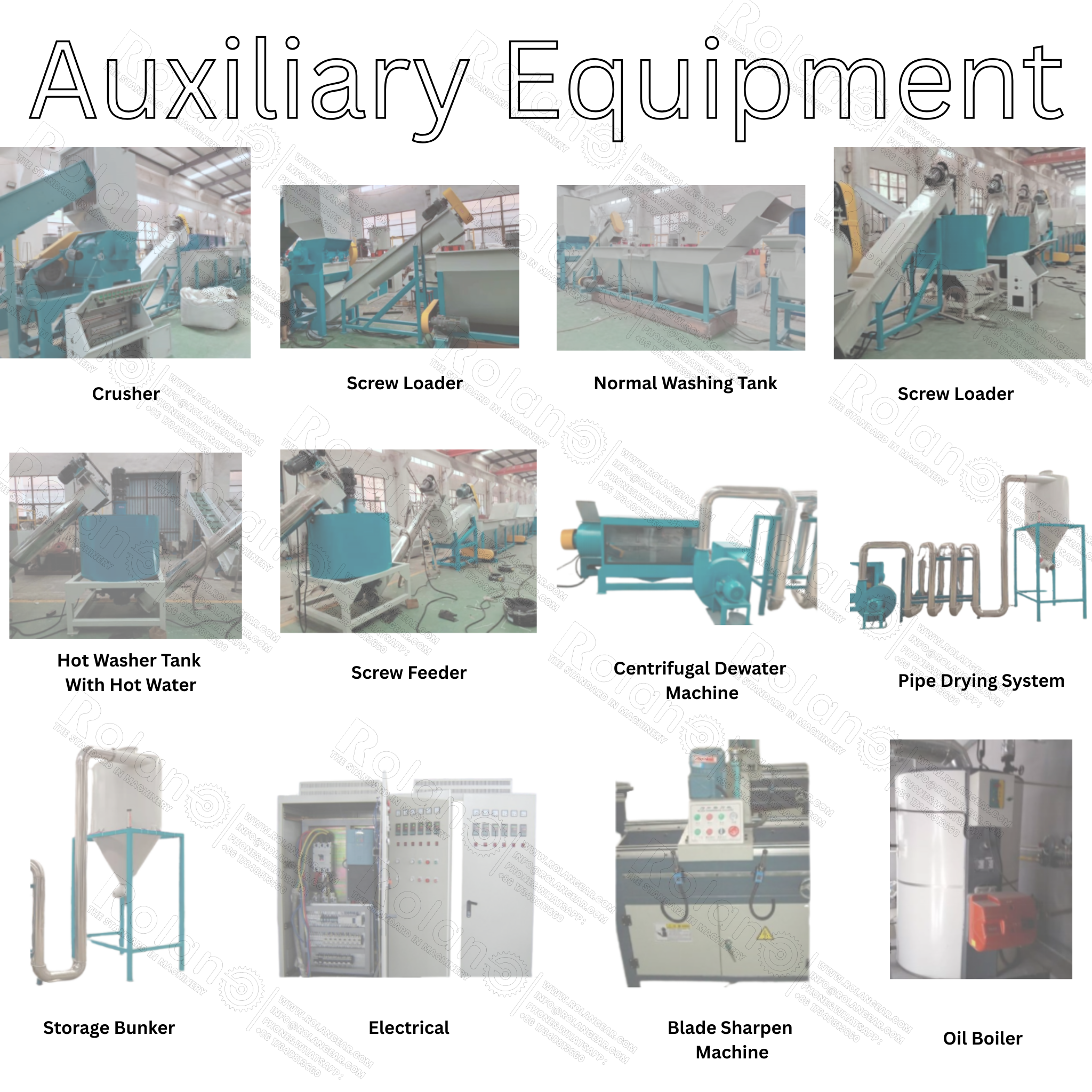

| Machine | Main Function | Reference Specification |
|---|---|---|
| Crusher | Bottle crushing | 300 kg/h capacity; 6 rotating blades; 4 fixed blades; Φ16 mm sieve; 22 kW motor; 1900 × 1600 × 3000 mm |
| Screw Loader | PET flakes conveying | 1.5 kW motor; 3500 mm effective length; Φ300 mm screw; 35 rpm; stainless steel |
| Normal Washing Tank I | Washing tank | 4000 mm effective length; 1.5 kW motor; 150 mm screw; 25 rpm; stainless SUS |
| Hot Washer Tank | Hot water washing | 4 kW main motor; Φ1000 mm barrel; 1 m³ effective volume; steam hot-water heating; stainless steel |
| Centrifugal Dewater Machine | Dewatering | 15 kW motor; 1000 rpm spindle speed; centrifugal dewatering; stainless steel; 1500 × 1000 × 1500 mm |
| Pipe Drying System | Hot-air drying | 5.5 kW blower motor; 24 kW heating power; 12 m tube length; Φ159 mm tube diameter |
| Storage Bunker | Storage silo for PET flakes | 0.3 m³ cubage; stainless steel material |
| Oil Boiler | Heating support | 400,000 Kal; rated evaporation 500 kg/h; rated steam temperature 170°C; size 1700 × 2500 × 2500 mm |
The washing line and granulation line are related, but they are not the same process.
The primary finished product is clean, washed, separated, and dried PET flakes. Important quality factors include flake size, cleanliness, moisture level, color separation, label and cap contamination, and remaining foreign materials.
If recycled PET pellets or granules are required, clean PET flakes can be transferred to a separate PET Granulation Machine Line. Washing prepares clean flakes, while granulation converts qualified flakes into recycled pellets.
Rolangear focuses on complete production-line planning instead of only supplying individual machines.
Machine selection, material flow, layout, utilities, and finished product requirements are considered together.
The line can be planned around factory dimensions, raw-material storage, water system, drainage, and maintenance access.
Rolangear supports overseas buyers with technical communication, production-line planning, installation discussion, and after-sales coordination.
This page is optimized for Google and AI search while keeping the wording natural for real industrial buyers.
Common questions from buyers planning a PET bottle recycling machine project.
It is a complete system used to process waste PET bottles into clean and dried PET flakes through feeding, sorting, crushing, washing, separation, rinsing, dewatering, drying, conveying, and finished-material collection.
This reference configuration is based on 300 kg/h. Actual output may vary according to bottle quality, contamination level, sorting condition, material composition, moisture, and operating conditions.
The main final product is clean recycled PET flakes. The exact flake quality depends on raw material condition, washing intensity, separation efficiency, water management, drying performance, and operation.
The washing line itself produces clean PET flakes. If recycled PET pellets or granules are required, a separate downstream PET Granulation Machine Line can be added.
Price depends on equipment configuration, capacity, raw material condition, automation level, water and wastewater system, factory infrastructure, shipping, installation support, and whether downstream granulation is included.
Please provide target capacity, PET bottle source, raw-material condition, desired PET flake quality, factory dimensions, electricity standard, water availability, working hours, automation level, destination country, and whether downstream granulation is required.
Tell us your PET bottle source, target capacity, factory dimensions, contamination level, desired final product, electricity standard, water availability, and destination country. Rolangear can help develop a PET bottle washing recycling line solution based on your real project conditions.
