Complete Beverage Production Line
Show the overall automatic juice and beverage production line so visitors can quickly understand the full factory solution from water preparation to filling and coding.
Complete Juice Production Line
The listed price is a deposit only. The final price may vary based on your specific requirements and options. Contact us for a customized quote.4o mini
Please be aware that the listed price is a deposit only. The final price of the machine may vary based on your specific requirements, configurations, and optional features. Once we receive your detailed needs, we will provide a full quotation accordingly. Feel free to contact us for a customized offer. make it shorter
Contact us for the catalogs of un-uploaded products
Directly Purchase: (7-10 Days)
Customize: (8-12 Days)
🥤 Complete Beverage Factory Solution
Automatic Juice & Beverage Blending and Filling Production Line
Rolangear designs automatic juice production line, beverage blending line and juice filling machine solutions for formulated juice-based drinks, powder-based beverages and customized liquid beverage manufacturing.
From RO water treatment, powder dissolving and blending to homogenization, sterilization, cooling, filling, coding and CIP cleaning, this integrated beverage production line helps factories build a cleaner, more stable and scalable manufacturing system.
Blending / Homogenizing5 T/H related preparation capacity
Sterilization3 T/H coil sterilizer, 120°C
Pure Water2 T/H RO water treatment
Complete LineFilling, coding, CIP and utilities
Automatic Juice Production Line for Blended Beverage Manufacturing
This automatic juice production line is suitable for manufacturers who need a coordinated beverage manufacturing process rather than one separate juice filling machine. It is designed for formulated juice drinks, blended beverages, powder-based drinks and customized liquid beverage products.
Integrated Production
Water preparation, dissolving, blending, filtration, homogenization, sterilization, cooling, filling and coding are organized as one production flow.
Stable Beverage Quality
Controlled blending, 25 MPa homogenization and thermal processing support more consistent beverage texture and product stability.
Hygienic CIP Cleaning
The three-tank CIP system supports hot water, acid and alkali cleaning for beverage tanks and process pipelines.
Product Introduction Image Section
Use this section like a Rolangear blog image layout: each image is separated into its own clean card with a short introduction. Add real content images such as finished beverage products, production scenes, line overview photos and filling output images.
Finished Juice & Beverage Products
Use product introduction images such as bottled juice, beverage packs, cups or finished drinks to show what customers can produce with the line.
Blending & Beverage Processing
Introduce the preparation process, including powder dissolving, beverage blending, filtration, homogenization and sanitary material transfer.
Filling, Coding & Final Output
Show the downstream filling and coding stage, including filled beverage products moving through the production line toward final packaging.
How the Juice & Beverage Production Process Works Step by Step
The line connects beverage preparation and downstream filling into a practical manufacturing process for commercial juice-based beverage production.
Step 1 💧Pure Water Preparation
Raw water passes through pretreatment and RO purification for beverage processing.
Step 2 🧂Powder Dissolving
Powder ingredients are dissolved in the 1000 L dissolving tank.
Step 3 🔄Beverage Blending
Prepared ingredients are mixed in 3000 L blending tanks with sanitary transfer.
Step 4 🧰Filtration
Duplex filters help remove impurities and support controlled flow.
Step 5 ⚙️Homogenization
The 5 T/H homogenizer processes the beverage at up to 25 MPa.
Step 6 🛢️Temporary Storage
Buffer tanks maintain production continuity before sterilization.
Step 7 ♨️Sterilization
The 3 T/H coil sterilizer provides controlled thermal treatment.
Step 8 ❄️Cooling
The plate cooler reduces product temperature before filling.
Step 9 🧃Filling & Tube Attaching
The filling system packages the beverage according to the selected format.
Step 10 🖨️Coding & Finished Product
The inkjet printer marks date or batch information before final output.

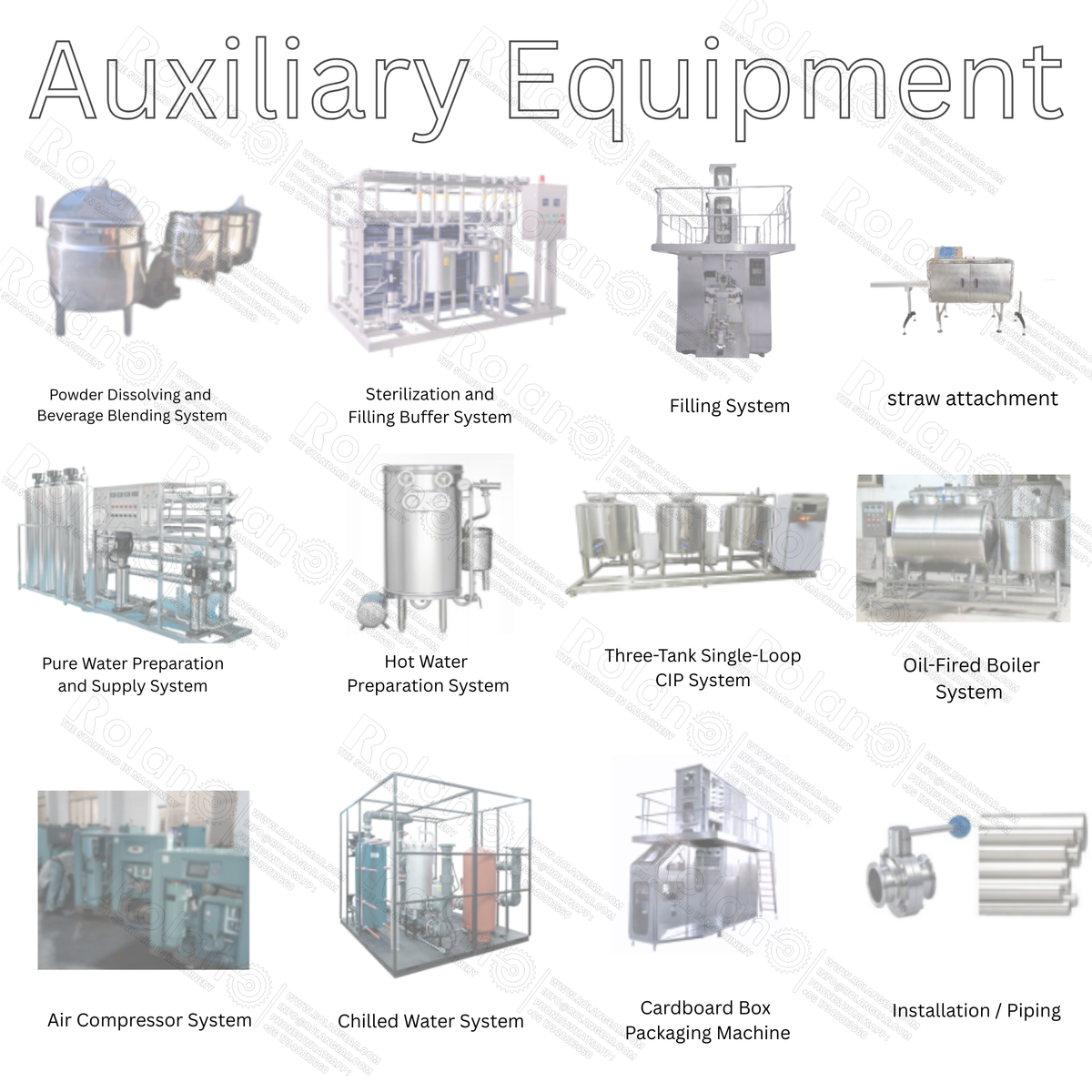

Main Equipment in the Automatic Juice Production Line
This section explains the main systems and key machines without configuration images. Add images only in the introduction image section above, such as finished products, full line overview, factory scenes, blending process, or filling output images.
Powder Dissolving / Beverage Blending System
Includes dissolving tank, blending tanks, sanitary pumps, filters, homogenizer, temporary storage tanks, CIP return pump and operating platform.
- 1000 L dissolving tank
- Two 3000 L blending tanks
- 5 T/H homogenizer, 25 MPa
Sterilization and Filling Buffer System
Combines coil sterilization, plate cooling, filling buffer tanks, sanitary pumps and steam control accessories for stable thermal processing.
- 3 T/H coil sterilizer
- 5 T/H plate cooler
- Four 3000 L buffer tanks
Filling, Tube Attaching and Coding
Downstream packaging section for beverage filling, tube attaching and inkjet coding.
- 250B/5000 filling machine
- Tube attaching machine
- Inkjet printer
Pure Water Preparation System
Provides dedicated process water with raw water storage, single-stage RO purification, pure water storage and sanitary water supply.
- 2 T/H RO pure water unit
- 2000 L raw water tank
- 5000 L pure water tank
Three-Tank Single-Loop CIP System
Supports cleaning-in-place with hot water, acid solution and alkali solution tanks plus CIP supply pump, filter, heater and distribution panel.
- 1500 L hot water tank
- 1500 L acid tank
- 1500 L alkali tank
Oil-Fired Boiler System
Provides steam for sterilization, heating, hot water preparation and CIP heating.
- Steam capacity 500 kg/h
- 3 boiler sets
- Steam distribution cylinder
Air-Cooled Box-Type Chiller
Provides chilled water for product cooling and process temperature control.
- Model NS-20AD
- 1 set
- 20 kW
Air Compressor, Piping and Electrical Control
Includes compressed air, material piping, non-material piping, electrical control cabinet, electrical engineering materials, installation and commissioning support.
- Air compressor system
- Piping and utility connection
- Control and installation support
Technical Configuration Overview
Core configuration information for buyers comparing automatic juice production line price, juice filling machine specifications and complete beverage production line supplier options.
| System | Main Equipment | Key Specification | Function |
|---|---|---|---|
| Blending | Dissolving tank, blending tanks, pumps, filters, homogenizer | 1000 L / 3000 L tanks, 5 T/H homogenizer, 25 MPa | Ingredient preparation, blending, filtration and homogenization |
| Sterilization | Coil sterilizer, plate cooler, filling buffer tanks | 3 T/H sterilization, 120°C; 5 T/H plate cooler | Thermal processing, cooling and buffer storage before filling |
| Filling | Filling machine, tube attaching machine, inkjet printer | 250B/5000 filling machine, 15 kW | Filling, tube attaching and production date/batch coding |
| Water Treatment | Raw water tank, RO pure water unit, pure water tank | 2 T/H single-stage RO; 2000 L + 5000 L tanks | Pure water preparation for beverage manufacturing |
| CIP Cleaning | Hot water tank, acid tank, alkali tank, CIP pump | Three 1500 L tanks; 10 T/H CIP supply pump | Cleaning-in-place for beverage tanks and process pipelines |
| Utilities | Hot water system, air compressor, boiler, chiller, piping, control | 500 kg/h boiler, NS-20AD chiller, air compressor system | Steam, chilled water, compressed air, piping and electrical support |
Suitable Beverage Products and Applications
This line is positioned for formulated and blended liquid beverages. It is not presented as a fresh-fruit extraction line unless customized equipment is added.
Juice-Based Beverages
For formulated juice drinks requiring blending, homogenization, sterilization, filling and coding.
Blended Liquid Beverages
For customized beverage formulas where stable mixing and controlled process flow are required.
Powder-Based Drinks
The 1000 L powder dissolving tank supports powder ingredient preparation before blending.
Buying Guide: How to Choose a Juice Beverage Production Line
Before asking for automatic juice production line price, confirm your product, capacity and filling format. This helps Rolangear recommend a balanced beverage manufacturing solution.
✅ Beverage type and recipe: juice drink, blended beverage, powder drink or customized formula.
✅ Target output: match blending, homogenization, sterilization, filling and water treatment capacity.
✅ Filling format: bottle, cup, pouch or other packaging requirement should be confirmed.
✅ Factory utilities: electricity, steam, compressed air, chilled water, drainage and layout space.
✅ Cleaning standard: confirm CIP cleaning requirements and sanitation expectations.
✅ Future expansion: plan extra capacity if your beverage business will grow later.
SEO Buyer Questions About Juice Production Lines
Common buyer searches include automatic juice production line, juice filling production line, beverage blending and filling line, juice processing equipment, beverage manufacturing machine, CIP beverage production line and juice bottling line supplier.
What is included in an automatic juice production line?
A complete line may include water treatment, powder dissolving, beverage blending, filtration, homogenization, sterilization, cooling, filling, coding, CIP cleaning and supporting utilities such as boiler, chiller and air compressor.
What is the difference between a juice filling machine and a complete beverage production line?
A juice filling machine handles packaging only. A complete beverage production line also includes preparation, blending, homogenization, sterilization, cooling, water treatment and cleaning systems.
How much is an automatic juice production line?
The final price depends on capacity, filling format, tank quantity, sterilization system, automation level, factory utilities and customization requirements. Contact Rolangear with your product and capacity for a customized quotation.
Can the line be customized for different beverage products?
Yes. Rolangear can adjust the beverage production line according to formula, target output, packaging format, factory layout and future expansion plans.
Does this line include CIP cleaning?
Yes. The configuration includes a three-tank single-loop CIP system with hot water, acid solution and alkali solution tanks for cleaning tanks and pipelines.
What is the homogenizer capacity?
The supplied configuration includes a 5 T/H homogenizer with a working pressure of 25 MPa.
What is the sterilization capacity?
The configured coil sterilizer has a rated capacity of 3 T/H with a sterilization temperature of 120°C and discharge temperature of 50°C.
Does the line include RO water treatment?
Yes. The configuration includes a 2 T/H single-stage RO pure water unit with pretreatment, raw water storage and pure water storage.
Build Your Juice & Beverage Production Factory with Rolangear
Tell us your beverage type, target capacity, filling format, bottle/cup/pouch size and factory conditions. Rolangear will help configure a practical automatic juice production line and beverage filling solution for your project.
