High-Performance C-Frame Press
The listed price is a deposit only. The final price may vary based on your specific requirements and options. Contact us for a customized quote.4o mini
Please be aware that the listed price is a deposit only. The final price of the machine may vary based on your specific requirements, configurations, and optional features. Once we receive your detailed needs, we will provide a full quotation accordingly. Feel free to contact us for a customized offer. make it shorter
Contact us for the catalogs of un-uploaded products
Directly Purchase: (7-10 Days)
Customize: (8-12 Days)

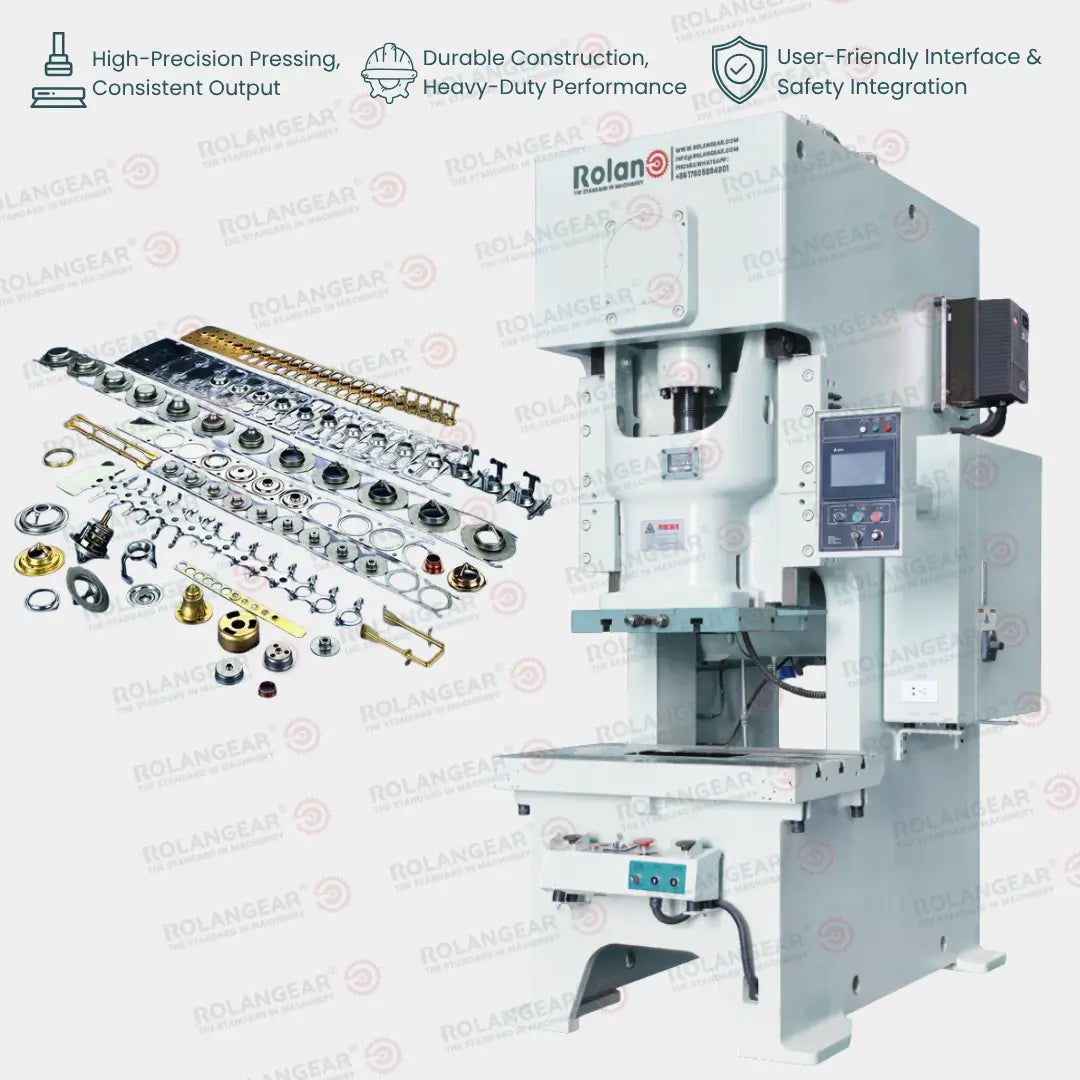

RGC Series High-Performance C-Frame Press
25-315 Ton Capacity | Rolangear Precision Machinery
Key Advantages
- High-torque wet clutch & brake system
- Hydraulic overload protection
- Precision GB(JIS)1class standards
- Low noise operation
- Long service life
- Low maintenance costs
- High efficiency design
- Dust-free operation
Standard Features
- Touch screen control panel
- Electric cam system
- Preset & forejudge counters
- Slide adjustment device
- Misfeed detection
- Second fall protection
- Anti-vibration mounts
- Crank angle indicator
Available Models
| Model | Capacity (Ton) | Height (mm) | Width (mm) | Depth (mm) |
|---|---|---|---|---|
| RGC-25 | 25 | 1993 | 1180 | 750 |
| RGC-45 | 45 | 2339 | 1388 | 830 |
| RGC-80 | 80 | 2675 | 1611 | 1030 |
| RGC-110 | 110 | 2900 | 1780 | 1160 |
| RGC-160 | 160 | 3355 | 2000 | 1310 |
| RGC-315 | 315 | 3950 | 2245 | 1700 |
Optional Accessories
- Quick die change system
- Pneumatic die cushion
- Auto grease pump
- Safety light sensors
- Feeder & uncoiler
- Slide knock-out device
- Die room lighting
- Mechanism hand
Industrial Applications
Automotive Components
Precision stamping of brackets and structural parts
Electrical Hardware
High-volume production of connectors and contacts
Appliance Manufacturing
Forming of panels and chassis components
Key Components
| 1. Press Frame | Heavy-duty welded steel construction |
| 7. Crankshaft | Precision ground and hardened |
| 9. H.O.L.P. | Hydraulic overload protection system |
| 13. Bolster | Reinforced support plate |
Choose options
Ready To Automate YourHigh-Performance C-Frame Press?
Contact Rolangear Machinery today for a quote, customization options, or a free consultation.
