Automatic Paper Straw Making Machine for Food-Grade Drinking Straws
Rolangear paper straw pipe production line includes paper roll feeding, glue application, spiral winding, multi-blade cutting, microwave drying, bevel cutting and straw packing for stable drinking straw manufacturing.
Paper Straw Making Machine for Eco-Friendly Drinking Straw Manufacturing
This paper straw production line is suitable for food-grade paper straws used in beverage, restaurant, coffee, juice, milk tea and retail packaging applications. The line supports paper straw forming, drying, bevel cutting and packing, helping buyers searching for paper straw making machine, paper drinking straw making machine, paper straw manufacturing process, paper straw machine price and paper straw packaging machine.
Complete Line Solution
Configure the paper straw machine, microwave dryer, bevel cutting machine, elevator and straw packing line as a complete paper straw pipe production line.
Flexible Straw Sizes
The source specification supports 4β12 mm straw diameter, 90 mm minimum length, and longer straw lengths depending on cutting setup and product design.
Food-Grade Paper Material
The paper straw manufacturing process uses food-grade craft paper and food-grade glue to produce disposable paper drinking straws for beverage use.
GDM-30 Paper Straw Production Line Specifications
Key parameters are based on the supplied paper straw pipe production line document. Final machine configuration can be customized according to straw size, drying method, cutting style, packaging format and factory power supply.
| Main paper straw machine model | GDM-30, 9/10 blade high-speed paper straw making machine |
| Paper layers | 3β4 layers |
| Straw diameter | 4β12 mm |
| Straw wall thickness | 0.2β1 mm |
| Minimum straw length | 90 mm |
| Maximum length | 1580 mm between two blades |
| Output speed | 3β100 m/min; straw making speed listed up to 3β120 m/min |
| Example capacity | About 450 pcs/min for 6 Γ 197 mm straws at 90 m/min, calculated with 200 mm including waste allowance |
| Cutting system | Multi-blade pneumatic cutting with servo synchronous tracking |
| Glue method | Single-side or double-side glue application |
| Power supply | 3P / 380V / 50Hz; special power requirements can be customized |
| Rated power | 6.15 kW/h listed for paper straw machine |
| Main machine dimension | 4250 Γ 640 Γ 1600 mm |
| Land area dimension | 9500 Γ 3500 Γ 1900 mm |
| Total weight | Approx. 1400 kg |
| Operator | 1 person |
How the Paper Straw Manufacturing Process Works
A professional paper straw production line must synchronize paper tension, glue amount, spiral winding angle, cutting speed, drying and packing. Below is the complete step-by-step paper straw manufacturing process for buyer understanding and SEO search visibility.
π Paper Roll Feeding and Auto Splicing
Food-grade paper rolls are installed on the paper roll hanging bracket. The machine can work with 3β4 paper layers and supports automatic paper connecting/splicing to reduce downtime.
- Paper tension should remain stable for accurate winding.
- Paper width and layer structure should match the required straw diameter.
π§ Glue Application
The paper strips pass through the stainless-steel glue station. Single-side or double-side gluing can be selected according to the paper straw structure and bonding requirement.
- Food-grade glue is used for beverage straw applications.
- Glue amount affects bonding strength, drying time and final paper straw quality.
π Spiral Winding into Paper Tube
Different paper layers are wound around the mandrel to form a continuous paper tube. The winding angle, belt tension and mandrel size determine paper straw diameter and wall thickness.
- Mandrel changeover supports different straw sizes.
- Stable winding helps prevent loose layers or oval straw shape.
βοΈ Servo Tracking Multi-Blade Cutting
The multi-blade cutting system follows the moving paper tube and cuts it into short paper drinking straws. The GDM-30 uses a multi-knife system with servo synchronous tracking for higher accuracy.
- Cutting length can be set according to product size.
- Clean cutting reduces burrs and improves packing quality.
π₯ Microwave Drying and Sterilization
The microwave paper dryer removes moisture from the formed paper straw and supports drying/sterilization. The listed microwave output power is 3 kW with adjustable conveyor speed from 0β2.5 m/min.
- Drying improves straw hardness and storage stability.
- Online temperature control helps keep the process stable.
π Bevel Cutting When Required
For sharp-tip or angled paper straws, the bevel cutting machine automatically cuts single or double-length straws into angled straws. The listed cutting speed is 800β1300 pcs/min.
- Suitable for 4β12 mm diameter straws.
- Bevel cutting is often used for drink pouch or cup applications.
π¦ Single or Bulk Straw Packing
The straw packing line can include an automatic elevator, single straw packing machine and bulk straw packing machine. The system supports single packing and group packing from 50β500 pcs per bag.
- Single pack speed is listed at 200β700 pcs/min.
- Bulk pack speed is listed at 3β10 bags/min.

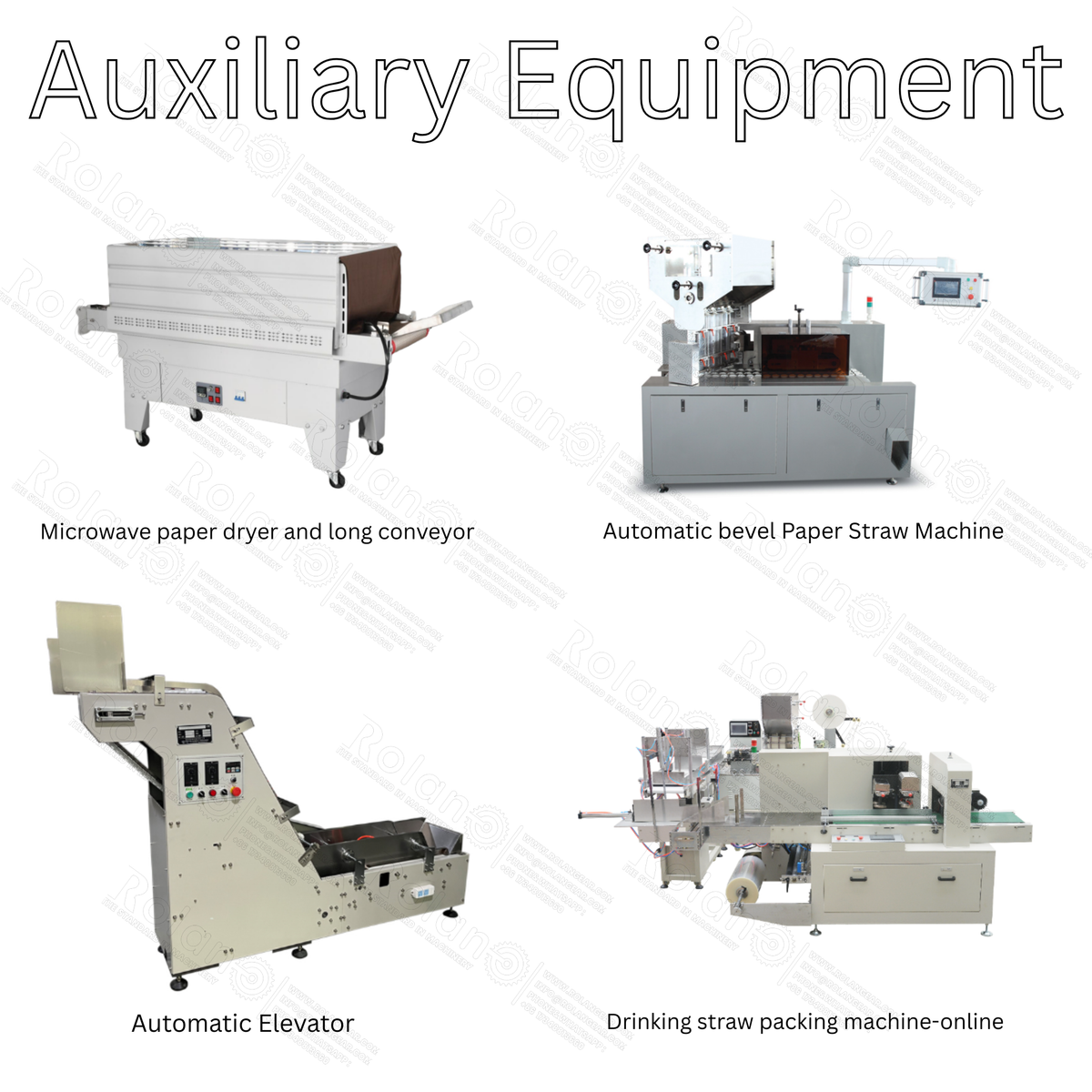

Main Equipment in the Paper Straw Production Line
Each machine is shown as a separate product card so machine images can be added easily in Shopify. Replace the placeholder area in each card with the matching uploaded machine photo.
π₯€ 9/10 Blade Paper Straw Making Machine
The core paper straw machine winds different paper layers into a tube with glue, then cuts the tube into paper drinking straws through a servo tracking multi-blade cutting system.
π₯ Microwave Paper Dryer
The microwave dryer and long conveyor dry the paper tube/straw after forming. It helps improve moisture control, product stability and drying efficiency before cutting or packing.
π Automatic Bevel Paper Straw Machine
This machine automatically cuts straight paper straws into angled or bevel-cut straws. It integrates automatic feeding and oblique cutting for high-speed production.
β¬οΈ Automatic Elevator
The automatic elevator transfers finished paper straws into the packing section smoothly, reducing manual handling and helping connect straw making with automatic packing.
π¦ Single Straw Packing Machine
Suitable for single paper straw packaging with BOPP or paper material. It uses touch-screen control, bag-length setting, photocell tracking and automatic counting.
What Paper Straw Properties Should Buyers Confirm?
Before ordering a paper straw production line, confirm the required paper straw properties so the winding, glue, cutting, drying and packing sections match the final product.
- Straw diameter, wall thickness and length
- Paper layer count, paper GSM and glue type
- Straight cut, bevel cut or special straw end design
- Drying level, hardness and storage stability
- Single pack, bulk pack or connected packaging line
Estimate Paper Straw Output
Use the same calculation logic from the source file: line speed Γ 1000 Γ· calculated straw length.
SEO Buyer Search Terms Covered
This product page naturally targets popular buyer searches such as paper straw production line, paper straw making machine, automatic paper straw making machine, paper drinking straw making machine, paper straw manufacturing process, paper straw machine price, paper straw packaging machine and straw packing machine price.
How Much Is a Paper Straw Production Line?
The paper straw machine price depends on required output, straw diameter, number of paper layers, drying system, bevel cutting requirement, single packing, bulk packing, electrical standards, spare parts and installation support. Send product details to receive an accurate quotation.

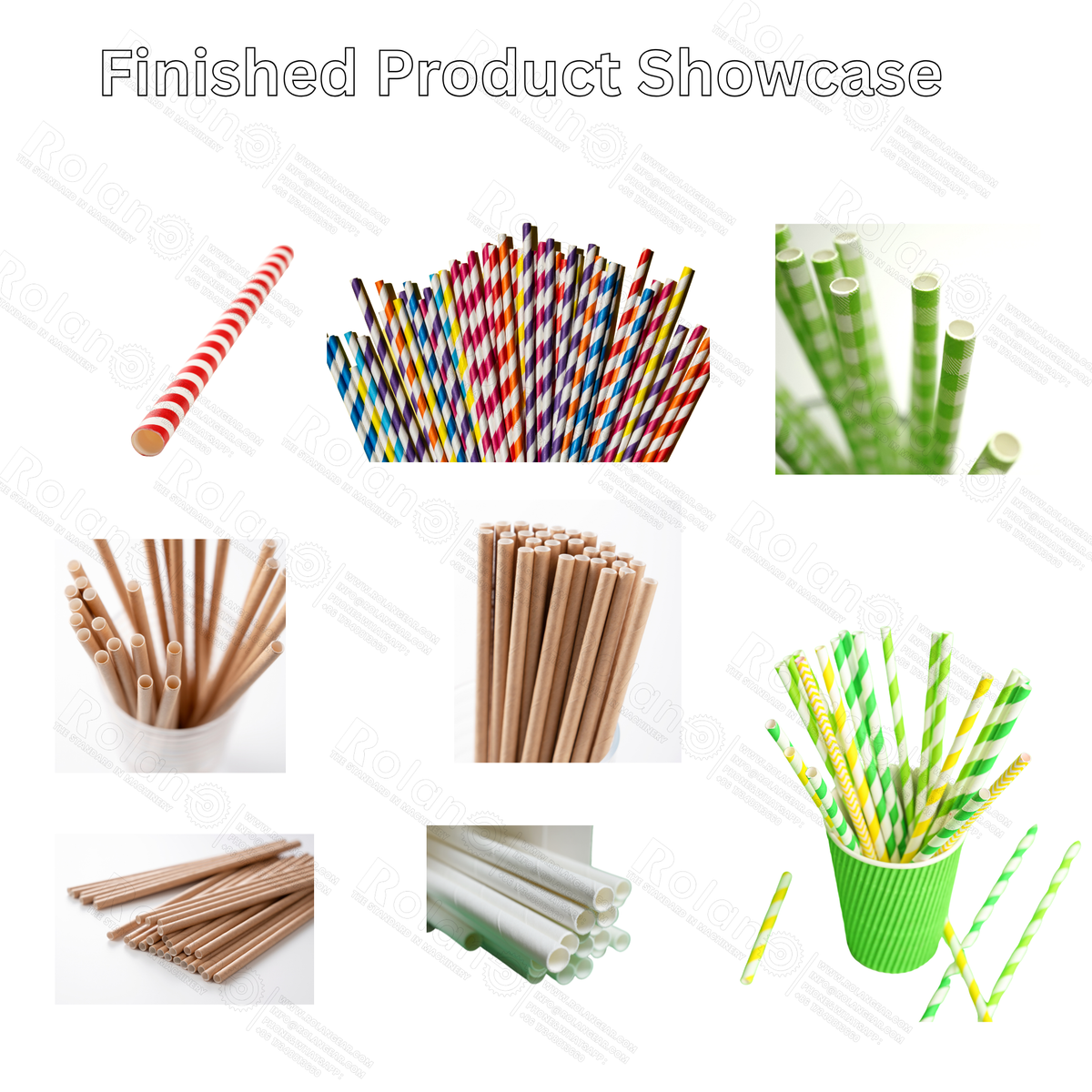

Suitable Products and Factory Applications
The line is suitable for eco-friendly disposable paper drinking straws used in beverage, foodservice and retail packaging.
Coffee and Beverage Straws
Paper straws for coffee shops, juice bars, restaurants and beverage brands.
Milk Tea and Cold Drink Straws
Custom diameter and length can be confirmed for different cups and beverage styles.
Retail and Bulk Packaging
Single straw packs and group bags are available with the matching straw packing line configuration.
Paper Straw Production Line FAQ
What is a paper straw production line?
A paper straw production line is a complete machine system that feeds paper rolls, applies food-grade glue, winds paper into a tube, cuts it into straws, dries the product and optionally bevel-cuts or packs the finished paper straws.
What is the paper straw manufacturing process?
The paper straw manufacturing process includes paper feeding, glue application, spiral winding, servo tracking cutting, microwave drying, bevel cutting when required and single or bulk straw packing.
What materials are used for paper straw production?
The source document lists food-grade white craft paper and food-grade glue. White mineral oil may be used for lubrication and cooling depending on the machine setup.
What is the capacity of the paper straw making machine?
Capacity depends on line speed and straw length. The source example uses 90 m/min and 200 mm calculated length, giving about 450 pcs/min.
How much is a paper straw production line?
The final paper straw production line price depends on whether the buyer needs only the paper straw making machine or a complete line with dryer, bevel cutting machine, automatic elevator and straw packing machines.
Can this line include paper straw packaging machine options?
Yes. The supplied configuration includes an automatic elevator, single straw packing machine and bulk straw packing machine. The bulk packing machine can pack 50β500 pcs per bag.
Can the machine make different paper straw sizes?
Yes. The listed straw diameter range is 4β12 mm, with different moulds and mandrels used for different sizes. Final size should be confirmed before production.
Need a Paper Straw Production Line Quotation?
Send your straw diameter, straw length, paper layers, target speed, drying requirement, bevel cutting requirement and packing format. Rolangear can help confirm the suitable paper straw making machine configuration.
Specifications can be customized according to paper material, straw size, output target, packaging method and factory power supply.
