Ten-row Paper Drawing Production Line
The listed price is a deposit only. The final price may vary based on your specific requirements and options. Contact us for a customized quote.4o mini
Please be aware that the listed price is a deposit only. The final price of the machine may vary based on your specific requirements, configurations, and optional features. Once we receive your detailed needs, we will provide a full quotation accordingly. Feel free to contact us for a customized offer. make it shorter
Contact us for the catalogs of un-uploaded products
Directly Purchase: (7-10 Days)
Customize: (8-12 Days)
Automatic Drawing Paper Production Line for Folded Paper Manufacturing
Rolangear supplies complete drawing paper production line solutions for paper converting factories, drawing paper manufacturers and paper product brands. This ten-row line combines drawing paper folding, automatic paper separation, rotary paper cutting and soft extraction packing to support efficient folded paper production and packaging.
folding line80–110 m/min
working speed16 bars/min
separator25–130 packs/min
packing
Drawing Paper Making Machine for Folded Paper Products
This paper converting solution is built for buyers searching for drawing paper production line, paper drawing production line, drawing paper making machine, drawing paper folding machine, drawing paper folding machine, drawing paper cutting and folding machine, drawing paper packing machine and soft pack paper packing machine.
Integrated Converting Flow
Folding, separating, cutting and soft pack packaging can be configured as one coordinated drawing paper manufacturing line.
Stable Folded Drawing Paper Size
The ten-row folding machine supports finished drawing paper size around 87.5 mm × 200 mm with controlled folding and cutting.
Soft Pack Packaging Options
High-speed soft extraction packing and double-head soft extraction package packaging support different packing requirements.
Modular Layout
Machine layout, paper width, finished pack size and packaging method can be planned according to factory space and product size.
Ten-Row Drawing Paper Production Line Specifications
Key specifications are organized for customer review. Final configuration should be confirmed according to raw paper, folding specification, finished pack size and workshop layout.
| Item | Specification |
|---|---|
| Main machine | Ten-row folding machine for folded drawing paper production |
| Applicable raw paper | 13–24 g/m² double-layer wood pulp base paper |
| Base paper size | Diameter 2100 mm, width 2100 mm; core diameter 76.2 mm |
| Finished product size | Approx. 87.5 mm length × 200 mm width; cross section length 200 mm |
| Folding specification | Approx. 87.5 mm + 2 mm |
| Folding machine speed | Design speed 130 m/min; working speed approx. 80–110 m/min depending on base paper quality |
| Main power requirement | AC380V, 50Hz, approx. 45 kW; compressed air 0.5 MPa required |
| Automatic paper separator | 2600 × 1200 × 1600 mm, approx. 1000 kg, stable speed 16 bars/min |
| Rotary cutting machine | Production rate 160 cuts/min; power 5.5 kW; machine weight approx. 2300–2600 kg |
| Soft pack machine | Packaging speed 25–130 packs/min; total power approx. 15 kW; net weight approx. 2500 kg |
| Double-head package machine | RG-554S, packaging speed ≤24 bags/min, voltage 220V 50Hz, machine weight approx. 1100 kg |
How the Drawing Paper Production Line Works
The workflow below follows the real machine process for folded drawing paper converting.
🧻 Jumbo Roll Feeding
Base paper rolls are placed on the paper return/feeding section. Independent motor control helps stabilize paper delivery and reduce feeding deviation.
↔️ Paper Alignment
The manual adjustment device supports horizontal movement of base paper and helps correct width deviation before folding.
🔁 Ten-Row Folding
The folding machine forms drawing paper into multiple rows. Vacuum adsorption cross-cutting and spiral knife structure support reliable cutting and paper drawing.
🔢 Automatic Counting
The paper moving and counting system separates drawing paper according to the target extraction count, helping prepare stacks for packaging.
📄 Automatic Paper Separation
The automatic paper separator divides folded drawing paper stacks into controlled quantities, typically 50–150 extractions depending on single sheet thickness.
✂️ Rotary Cutting
The large rotary paper cutter cuts drawing paper rolls or stacks accurately. Servo feeding and automatic grinding help improve cutting stability and quality.
📦 Soft Pack Packaging
The high-speed soft extraction packing machine wraps, folds, seals and cuts drawing paper packs with photoelectric tracking and servo-controlled film cutting.
🛍️ Double-Head Bagging
The double-head package packaging machine can automatically bag products and fold the edge to complete sealing and cutting after manual loading.
✅ Finished Product Output
Finished soft pack drawing paper products are ready for carton packing, warehouse storage or distribution to retail and commercial paper product markets.
Main Equipment in the Drawing Paper Production Line
These cards match the visible and source-confirmed machine sections.

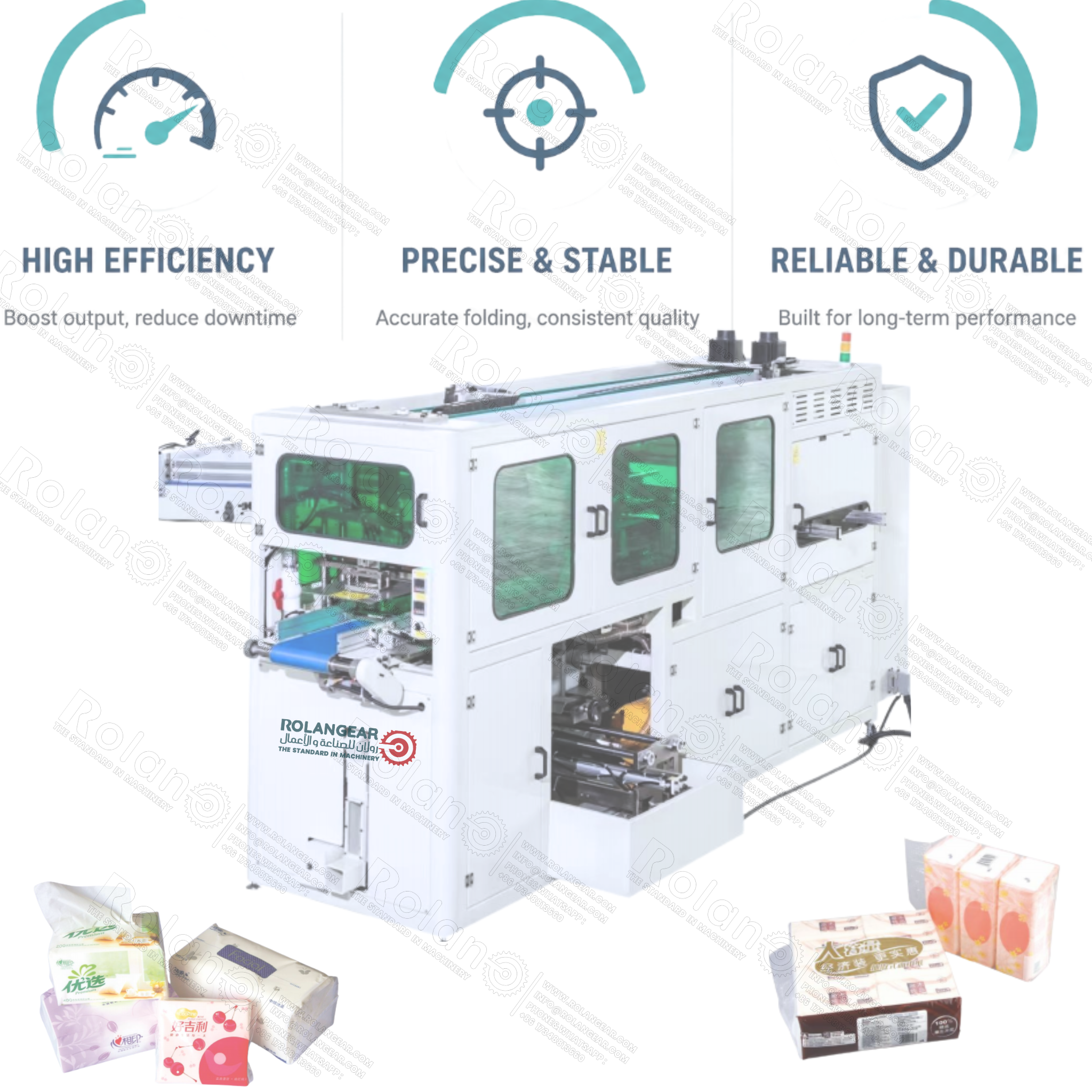

🔁 Ten-Row Folding Machine
Processes base paper into folded drawing paper rows with stable feeding, folding and cross-cutting control.
- Applicable paper: 13–24 g/m² double-layer drawing paper
- Finished size: approx. 87.5 × 200 mm
- Working speed: approx. 80–110 m/min
📄 Automatic Paper Separator
Separates folded drawing paper into controlled extraction quantities before downstream cutting or packing.
- Dimension: 2600 × 1200 × 1600 mm
- Applicable paper width: 1000–1500 mm
- Stable split speed: 16 bars/min

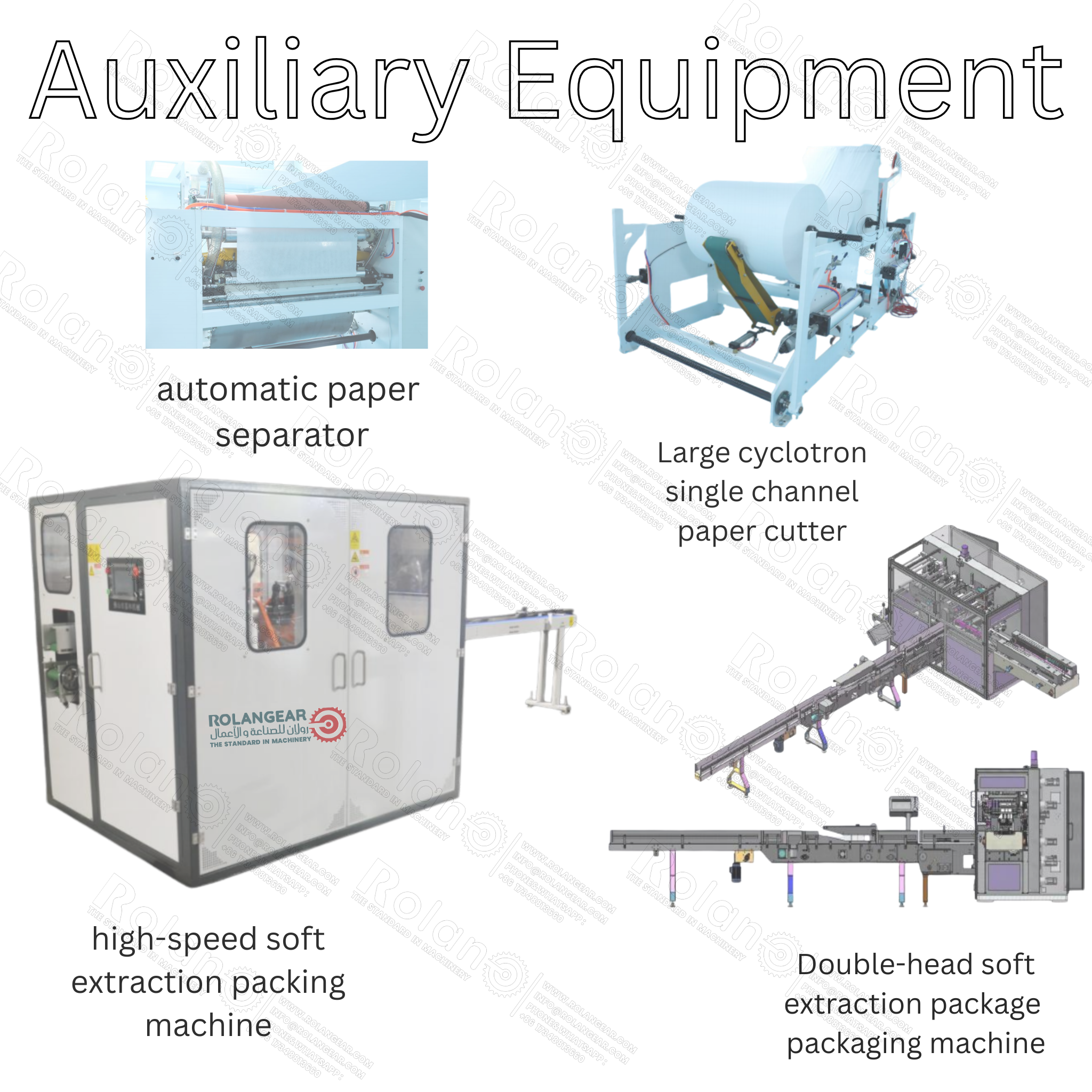

✂️ Large Rotary Single-Channel Paper Cutter
Automatically and continuously cuts drawing paper with servo feeding, rotary knife cutting and automatic grinding support.
- Production rate: 160 cuts/min
- Round knife diameter: 610 mm
- Power: 5.5 kW
📦 High-Speed Soft Extraction Packing Machine
Wraps drawing paper packs using film feeding, folding, side sealing and cutting for stable retail package appearance.
- Packaging speed: 25–130 packs/min
- Pack size: L 95–200 mm, W 80–110 mm, H 30–100 mm
- Power: approx. 15 kW
🛍️ Double-Head Soft Extraction Package Packaging Machine
Supports secondary bagging for soft drawing paper packs and automatically folds, seals and cuts after bagging.
- Packaging speed: ≤24 bags/min
- Max package size: 450 × 320 × 110 mm
- Machine size: 3000 × 4000 × 1300 mm
What Should You Confirm Before Quotation?
- Raw paper specification: grammage, width, diameter, core diameter and paper quality
- Finished product size: length, width, folding specification and extraction count
- Packaging style: soft pack drawing paper, bagging, carton packing or customized pack format
- Required capacity: folding speed, separating speed, cutting output and packaging speed
- Factory space: available workshop length, width, height, power supply and compressed air
- Automation level: manual feeding support, automatic counting, automatic packing and layout connection
Estimate Daily Separator Output
Use this simple planning tool for automatic paper separator output. Final production depends on sheet thickness, folding stability, cutting and packing speed.
Suitable Drawing Paper Products and Factory Applications
This line is suitable for paper converting companies that want to produce folded drawing paper and soft pack paper products for retail, hotel, commercial and distributor markets.
Drawing Paper Packs
Folded drawing paper products for retail shelves, supermarkets and daily household use.
Hotel and Commercial Drawing Paper
Soft pack drawing paper products for hotels, offices, restaurants, cleaning service companies and commercial channels.
Drawing Paper Converting Factories
Production line solution for drawing paper converting, cutting, folding and packing workshops.
OEM Drawing Paper Packaging
Supports private label drawing paper products and customized soft pack packaging requirements.
Drawing Paper Production Line FAQ
What is a drawing paper production line?
A drawing paper production line is a complete paper converting system used to feed base paper, fold drawing paper, count, separate, cut and package finished drawing paper soft pack products.
What machines are included in this drawing paper production line?
The line can include a ten-row folding machine, automatic paper separator, large rotary single-channel paper cutter, high-speed soft extraction packing machine and double-head soft extraction package packaging machine.
What is the working speed of the ten-row folding machine?
The technical specification lists a design speed of 130 m/min and working speed around 80–110 m/min, depending on the quality of the base paper and production conditions.
How much is a drawing paper making machine?
The drawing paper machine price depends on paper width, folding rows, cutting system, packing speed, automation level, workshop layout and optional equipment. Send your target product and capacity for a customized quote.
Can Rolangear customize the layout?
Yes. Rolangear can help plan the workshop layout according to machine configuration, space, power, compressed air, material flow and finished product packing requirements.
