Toilet Soap Production Line for Commercial Soap Manufacturing
Build a professional toilet soap manufacturing factory with an integrated line for mixing, three-roll refining, vacuum plodding, electronic cutting, automatic stamping, cooling, and conveying.
Complete Automatic Solution
Rolangear's RG-SP1000S Toilet Soap Production Line is designed to convert prepared soap materials into finished stamped toilet soap bars through one coordinated production system.
The line uses soap noodle as the main material, together with pigment and fragrance. It supports customized soap dimensions, weight, and surface patterns according to customer requirements.
Mixing, refining, extrusion, cutting, stamping, cooling, and conveying are planned as one production line.
Soap size, weight, and mould pattern can be discussed according to market or private-label needs.
Products You Can Produce
The main product is toilet soap manufactured from soap noodle, pigment, and fragrance. The source specification indicates fatty acid content / active matter content of 60%–80% for the finished toilet soap.
Different markets may require different bar dimensions. The cutting system can be adjusted by product size and weight.
The stamping mould can be selected according to the required soap surface pattern or brand design.
The XDA-1500 stamping machine is specified with three cavities for 70–200 g products.
Suitable for manufacturers developing retail brands, OEM supply, hospitality products, or private-label soap bars.
Complete Toilet Soap Production Process
The production process can be summarized as: mix materials, grind into soap flakes, extrude soap bar, then cut and stamp finished soaps.
A complete system must keep material flow stable from the mixer to the final stamping and conveying section.
Toilet soap process flow from material preparation to final soap bar handling.
Technical Advantages
1,000–1,500 kg/h capacity supports commercial-scale toilet soap manufacturing.
Relevant material-contact parts of the mixer and vacuum plodder use stainless steel 304.
The vacuum system removes air from soap material to help reduce breakage and support compact bars.
Soap size and weight can be adjusted through the machine control according to customer requirements.
XDA-1500 stamping machine uses PLC control and Yaskawa servo system for efficient soap forming.
Refrigerator cools the soap mould, while the chiller supports circulating water for key machines.
Technical Specifications
| Item | Specification | Notes |
|---|---|---|
| Line model | RG-SP1000S | Complete toilet soap production line |
| Capacity | 1,000–1,500 kg/h | Standard production capacity |
| Main materials | Soap noodle, pigment, fragrance | Formulation to be confirmed by customer |
| Finished product | Toilet soap bars | Dimensions and pattern customizable |
| Active matter / fatty acid content | 60%–80% | According to supplied product information |
| Workshop reference | Above 125 m²; approx. 25 m × 5 m × 3.5 m | Excludes packing machine |
| Power condition | >160 kW, 380 V, 50 Hz | Final utility load must be confirmed |
| Operators | Approx. 6–8 persons | Reconfirm based on final configuration |

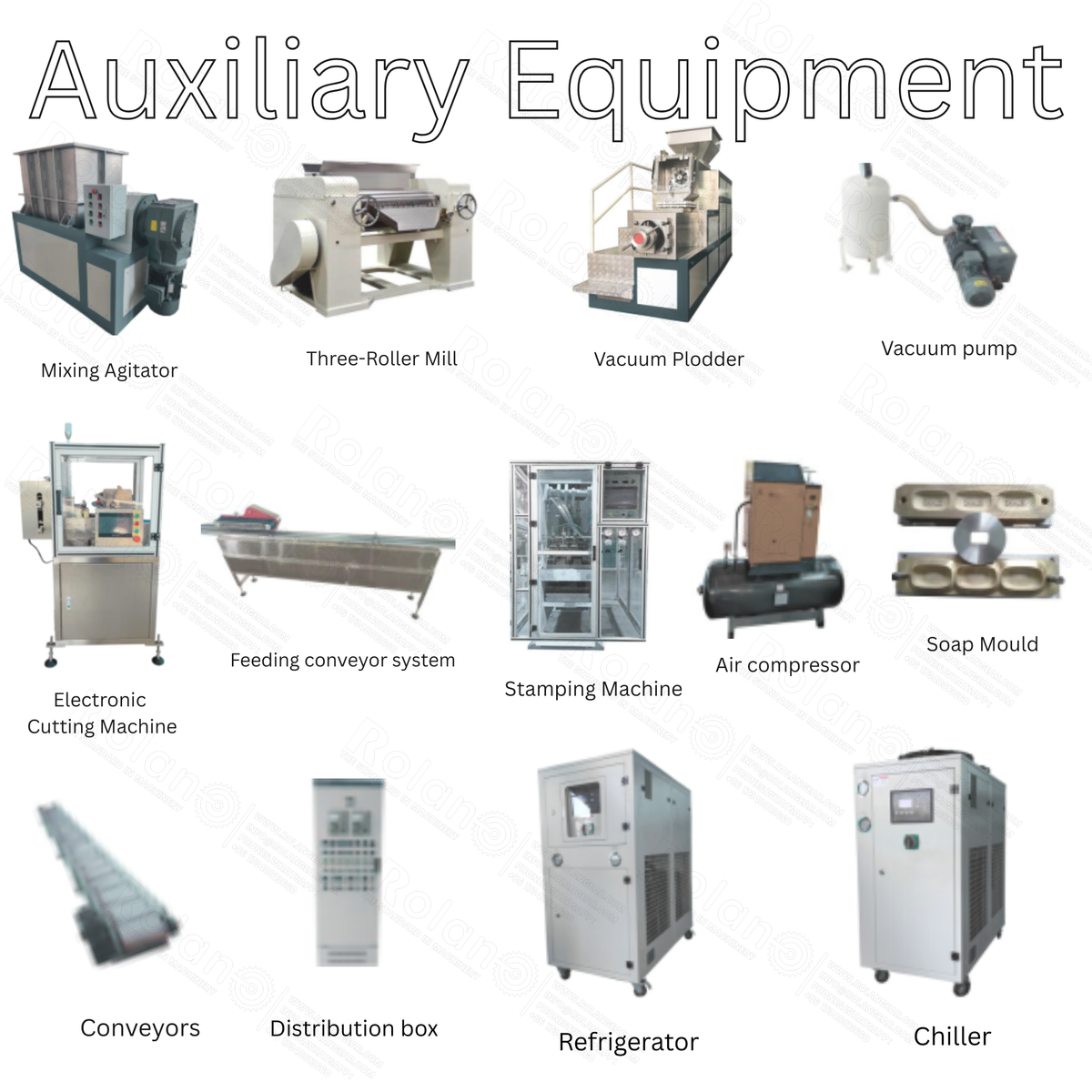

Complete Production Line Configuration
This section highlights the important equipment modules and customer-facing functions used to build a complete toilet soap manufacturing line.
RG-200S Mixing Agitator
- 200 kg/batch
- 5–10 min mixing time
- 15 kW half-spiral blender
- SS304 material-contact parts
SG405 Three-Roll Mill
- Φ405 mm roll diameter
- 810 mm roll length
- 22 kW motor power
- Supports tighter soap structure
XDA-1500 Stamping Machine
- 50–70 times/min
- 3 cavities for 70–200 g products
- PLC + Yaskawa servo system
- Changeable soap mould pattern
Cooling Systems
- Refrigerator for soap mould cooling
- Chiller for circulating water
- Supports smooth release and stable operation
Factory Layout and Utility Requirements
The recommended workshop area is above 125 m², with a reference size of approximately 25 m long, 5 m wide, and 3.5 m high. This includes operating space and excludes the packing machine.
Suggested flow: raw material area → mixing → three-roll refining → vacuum plodding → cutting → stamping → cooling → packing → finished product storage.
Greater than 160 kW, 380 V, 50 Hz according to the supplied production condition.
Reserve additional space for the packing machine and finished product handling.
Investment Factors
A toilet soap factory investment includes more than production machinery. Customers should evaluate target capacity, product specifications, raw materials, workshop preparation, utilities, packaging system, moulds, cooling system, spare parts, and technical support.
Confirm whether 1,000–1,500 kg/h matches your market and daily production plan.
Confirm soap size, weight, pattern, and product positioning before final quotation.
Check workshop size, electrical power, cooling location, operator access, and material flow.
Packaging is planned separately according to the customer's finished product and sales channel.
Why Invest in a Toilet Soap Production Line?
Toilet soap is an everyday personal-care product used across retail, hospitality, institutional supply, OEM, and private-label markets. A complete production line helps manufacturers turn soap noodle into a scalable commercial product.
A 1,000–1,500 kg/h line provides a substantial production platform for established market supply.
Adjustable product size, weight, and pattern support private-label and customized orders.
Conveyors and automatic systems connect key manufacturing stages.
Refining, vacuum plodding, precision cutting, stamping, and cooling support stable soap formation.
FAQ
What material does the toilet soap production line use?
The supplied configuration uses soap noodle, together with pigment and fragrance.
What is the capacity of the RG-SP1000S line?
The stated capacity is 1,000–1,500 kg/h.
Can the soap weight and pattern be changed?
Yes. Soap size, weight, and mould pattern can be planned according to customer requirements.
What is the function of the three-roll mill?
It further mixes and refines the soap material, helping make the soap structure tighter and supporting density and quality.
What does the vacuum plodder do?
It grinds, refines, removes air, and presses the soap material into a compact continuous soap bar.
Is packaging included?
The supplied workshop dimensions exclude the packing machine, so packaging should be planned as a separate downstream section.
Build Your Toilet Soap Manufacturing Factory with Rolangear
Send us your soap size, product weight, pattern, target capacity, factory conditions, and packaging requirements. Rolangear can help evaluate the equipment configuration and prepare a complete toilet soap manufacturing solution.
